Acoustic camera PCE-AIC 50

microphone arrayfor research and developmentfor process monitoring

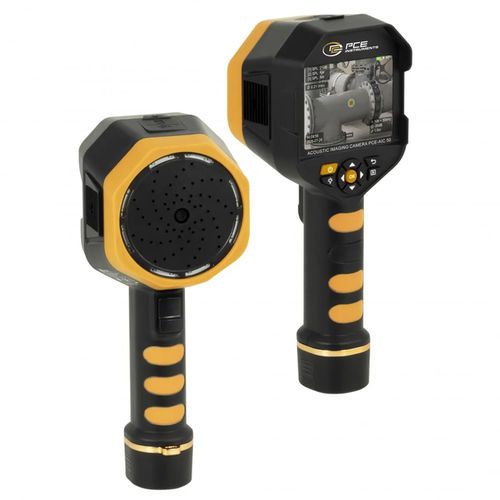

Description The acoustic camera PCE-AIC 50 is a measurement system for fast, reliable localisation of sound sources and detection of compressed-air, gas and vacuum leaks. Equipped with a 64-channel MEMS microphone array, high-resolution optics and advanced analysis software, it provides precise acoustic visualisation in industrial environments. The combination of acoustic and optical capture enables real-time visualisation and documentation of acoustic events.

Functions and applications The device captures signals from 2 kHz to 100 kHz, covering audible and ultrasonic noise. Detection range is approx. 0.3 m to 50 m. Typical use cases: preventive maintenance, industrial inspection, condition monitoring of machines and plants, localisation of compressed-air/gas/vacuum leaks, partial discharge detection, troubleshooting of mechanical components and noise source analysis in production, energy, building services and research.

Video / recording / transmission Built-in storage (8 GB) with Micro-SD expansion up to 512 GB. Create and save analysis reports directly on the device. Supports Wi‑Fi (2.4 GHz and 5 GHz) for wireless image transfer and convenient data handling.

Features

• 64-channel digital MEMS microphone array for precise sound source localisation
• Frequency range: 2 kHz to 100 kHz
• Detection range: 0.3 m to 50 m
• Imaging rate ≥ 25 FPS for acoustic visualisation
• Integrated gas leak and leak-rate estimation
• 12 MP camera with 72° field of view, fixed focal length 3.9 mm
• Storage: TF/Micro-SD slot up to 512 GB
• Wireless image transfer (WLAN 802.11a/b/g/n/ac)
• 1/4" tripod mount

Specification General technical data:
Channels: 64
Frequency: 2 ... 100 kHz
Display type: LCD
Display size: 3.5 inch
Display resolution: 640 x 480
Storage medium: Micro-SD card
Storage capacity: 8 GB (expandable to 512 GB)
Interfaces: USB-C, Wi‑Fi
Wireless standards: 802.11a/b/g/n/ac
Sensor sensitivity: -26 ±1 dBFS
Camera resolution: 640 x 480
Tripod thread: 1/4"
Field of view (FOV): 72° ±3°
Color palettes: Rainbow, Iron Red, White Hot
Sensors: MEMS microphones
Pixel size: 12 µm
Frame rate: 25 fps
Focal length: fixed 3.9 mm
Detection range: 0.3 ... 50 m
Menu languages: German, English (GB), English (US), Spanish, Chinese, Russian, French, Italian, Thai, Polish, Czech, Turkish, Korean, Finnish, Japanese, Swedish, Bahasa
Protection class (device): IP52
Power supply: 5 V DC (USB-C)
Battery: 2 x 3.7 V Li‑ion packs
Capacity: 5000 mAh
Energy: 18.25 Wh
Operating conditions: -20 ... 55 °C, 10 ... 95 % RH
Storage conditions: -30 ... 65 °C, 10 ... 95 % RH
Dimensions (L x W x H): 245 x 95 x 80 mm
Weight: 425 g

Package contents

• 1 x Acoustic camera PCE-AIC 50
• 2 x removable lithium batteries
• 1 x USB Type-C charging cable
• 1 x carrying case
• 1 x user manual
