Electronic vibration switch PCH 1220

electronic vibration switch
electronic vibration switch
Add to favorites
Compare this product

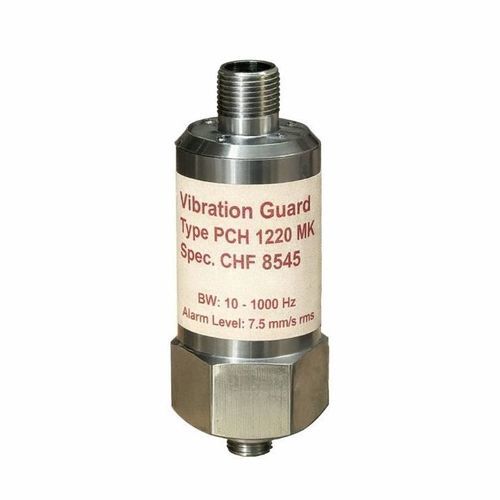

Are you looking for an electronic vibration switch, without any 4-20 mA output but just a relay, the PCH 1220 is a low cost solution for a basic protection application? PCH 1220 constantly monitors the machine vibration within a 10-1000 Hz (ISO 10816-3) frequency band and compare the value to the preset alarm threshold. You can use the PCH 1220 on fans, pumps and blowers, where you only need a digital alarm input and not a 4-20 mA reading. The vibration alarm is already preset, so installation is done easily. The sensor is supplied in stainless steel 303 housing with an integrated M8 mounting stud and a M12 top exit connector. PCH 1220 measuring parameter: Velocity in mm/s Frequency range: 10 to 1000 Hz (DIN/ISO 10816-3) Alarm level in mm/s pre-set to individual requirement Alarm relay with delay time Status indicator through LED on the monitor 4-pin M12 connector
