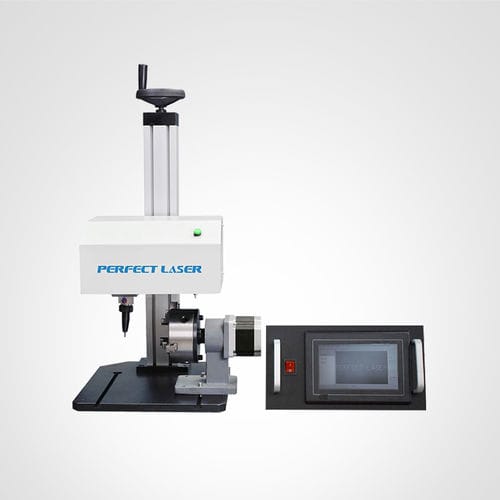

Dot peen marking machine PEQD-025E
metalplasticfor stainless steel

dot peen marking machine
dot peen marking machine
dot peen marking machine
dot peen marking machine
Add to favorites
Compare this product


Characteristics

Technique
dot peen
Material
metal, plastic, for stainless steel, brass
Configuration
benchtop
Applications
industrial
Other characteristics
high-speed
Power

Min.: 0 W (0 hp)

Max.: 400 W (0.54 hp)

X travel

150 mm, 200 mm, 300 mm, 400 mm (6 in)

Y travel

100 mm, 200 mm, 300 mm (4 in)

Speed

Min.: 0 mm/s

Max.: 50 mm/s

Depth

Min.: 10 µm

Max.: 2,000 µm (0.1 in)

Description

★Introduction: Perfect Laser is world leading manufacturers for dot peen engraving machine. Our dot peen engraving machine is a kind of pneumatic marking machine that works by the vibration caused by the compressed air and the mechanical device.  ★Application: Dot peen engraving machine is applicable for flat marking and rotary marking in the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc.  ★Product Features: 1.PEQD-025E type dot peen engraving machine takes complete LCD control screen, integrates PC, display, and control system into one unit, no need to work with computer, with smaller size so the dot peen engraving machine can save space, easier to operate and high efficiency. 2.Support both 2D flat marking and 3D rotary marking. The rotary round marker type is suitable for marking both flat and all kinds of cylindrical, conical & spherical workpieces. The rotary range is 0-150mm or 0-200mm.

VIDEO
