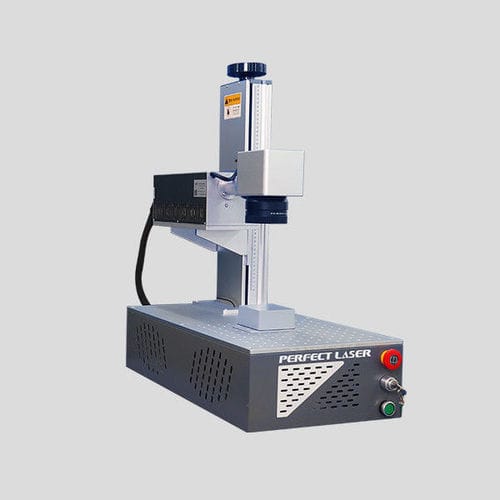

3D engraving machine PE-DP-5051

UV laserdesktop

Product
The Desktop 3D Crystal Subsurface UV Laser Engraving Machine PE-DP-5051 integrates a 5W UV solid-state laser for high-precision, non-contact internal (subsurface) engraving and UV marking of crystal and a range of other materials.

Key features

• 5W UV solid-state laser with 355 nm wavelength and small spot size for fine-detail internal engraving.
• Non-contact processing with constant-pulse energy to ensure consistent mark quality.
• Combined 3D internal engraving and surface UV marking in one desktop unit.
• Maintenance-free optical path, high-precision motion control and modular design for straightforward servicing.

Applications

• Subsurface 3D engraving of crystal and glass (internal images, logos, portraits).
• Surface marking and fine engraving on metal, acrylic, wood, leather, fabric, ceramics, coated films and plastics.

Technical data
Product name: Desktop 3D Crystal Inner Laser Engraving Machine
Model: PE-DP-5051
Laser source: 5W UV solid-state laser
Wavelength: 355 nm
Max operating frequency: 40K Hz
Max engraving range: 50×50×80 mm (optional 70×70×50 mm)
Standard lens: 100 mm
Accuracy: 0.01 mm
Top speed: 150,000 points/min
Power: < 300W, 110–220V / 50–60Hz
Cooling: Air cooling
Supported formats: BMP, JPG, DXF, OBJ, STL
Applicable materials: Crystal, glass, acrylic (internal carving) and metal/plastics for surface marking
Laser warranty: 1 year
Software: Perfect Laser self-developed software
Machine size: 650×300×700 mm
Packaging size: 76×45×84 cm

Packaging & Delivery

• Sea-worthy or air-worthy packing options.
• Professional logistics and trained packing team.
• Standard lead time: 7 working days; MOQ: 1 set.

Competitive advantages

• Integrated 3D subsurface engraving and UV marking in a compact desktop format.
• High engraving precision (0.01 mm) and high throughput (up to 150,000 points/min).
• Maintenance-friendly design and flexible payment and delivery terms.

Technical specifications

• Model: PE-DP-5051
• Laser power: 5W (UV solid-state)
• Wavelength: 355 nm
• Engraving area: 50×50×80 mm (optional 70×70×50 mm)
• Standard lens: 100 mm
• Accuracy: 0.01 mm
• Max speed: up to 150,000 points/min
• Max frequency: 40K Hz
• Power requirement: <300W, 110–220V, 50/60Hz
• Cooling: air cooling
• Supported formats: BMP, JPG, DXF, OBJ, STL
• Applicable materials: crystal, glass, acrylic, metal surface marking, plastics, wood, leather, fabric, ceramics
• Machine size: 650×300×700 mm
• Packaging size: 76×45×84 cm
• Laser warranty: 1 year
• Software: Perfect Laser self-developed software
