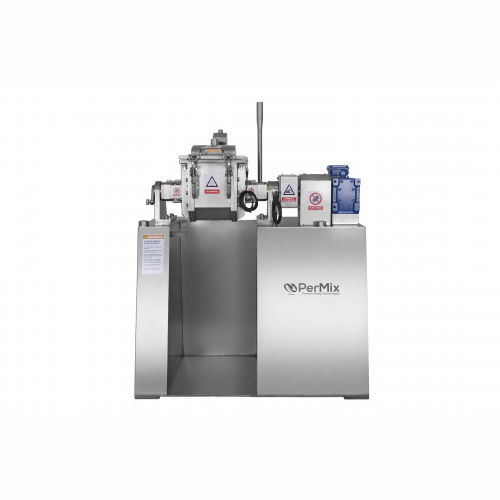

Dynamic mixer PSG series

horizontalbatchsolid/liquid

The PerMix PSG series Sigma Mixer, which is also known as the Double Sigma Mixer, or Double Z Blade Mixer, is used for the mixing-kneading of materials with very high viscosity (over 500,000 cps). PerMix Sigma Mixer models lead the industry in engineering, innovation, performance, & quality, all while maintaining an affordable price point that everyone can afford. The Sigma Mixer’s unique design of Z-shaped mixing tools installed in two semi-cylinders, the PerMix Sigma Mixer is able to provide the combined functions of compressing, stretching, folding, kneading & mixing, which makes it widely used in the chemical, food, sealing compound and paint industries, among others. To further add to the diversity of the Sigma Mixer, we can add an extruder below the mixer which allows products to be discharged in a precise, uniform and metered discharge with forming capability. In the PerMix PSG series Sigma Mixer, there are two special designed Z-shaped rotating elements installed in a W-shaped chamber, the intersection of which forms a saddle piece and meeting tangentially just above the saddle. They rotate at different speeds (usually in the ratio of 3:2) and in opposite direction. Tilting Tank For small machines (PSG-1 to PSG-15), tilting can be done manually with a mechanical type (hand lever or hand wheel). For greater machines, electro-mechanically or hydraulically powered tilting system is supplied. PerMix supplies the feature that at tilted position, the blade will rotate at low speed (usually 20% of full speed) in reverse direction to aid the discharge by pushing two buttons with both hands.
