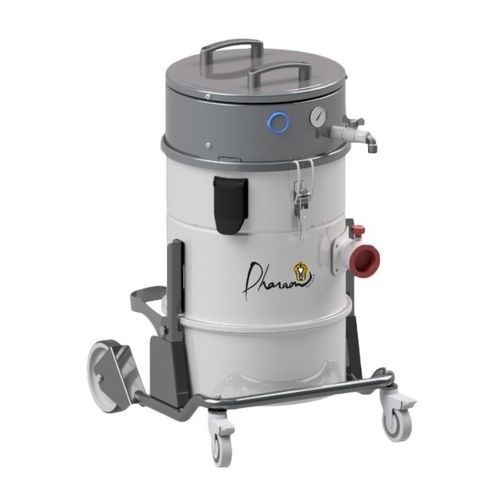

Industrial vacuum cleaner MTL301AIR

dryfine dustdust

Overview
The MTL301AIR by Pharaon is a compact, ergonomically designed compressed-air industrial vacuum intended for fine dust recovery on construction sites and industrial environments. It operates without an electric motor using a Venturi compressed-air system and requires minimal maintenance. The M PTFE conical cartridge filter housed in a steel chamber provides a large filtration area and maintained performance in dusty conditions.

Main features

• Venturi system driven by compressed air for powerful suction without an electric motor.
• Dustop system: semi-automatic cleaning via a manual flap for quick and effective filter de-clogging.
• M PTFE conical cartridge filter offering high filtration surface and dust resistance.
• Tangential inlet with cyclonic effect to prevent dust from contacting the filter directly and extend filter life.
• Optional HEPA (class H) filter compatibility for applications requiring high-efficiency filtration.
• Epoxy-painted steel construction for impact resistance and durability.
• Removable 13 L collection container for easy emptying and maintenance.
• Mobility: two multidirectional braked castors and two large-diameter wheels for difficult site access.
• Suitable for extraction of fine dust and industrial waste.

Key benefits

• Very compact design (most compact in the range).
• Balanced performance relative to compressed-air consumption.
• Designed to reduce clogging and simplify on-site maintenance.

Specifications / technical data

• Model: MTL301AIR
• Dimensions: 48 × 48 × 90 cm
• Maximum depression (mmH2O): 3700
• Maximum flow (m3/h): 150
• Capacity: 13 L
• Sound level (dB): 68
• Filtration surface: 6000 cm²
• Air inlet: 50 mm
• Filter: M PTFE conical cartridge; optional HEPA class H
• Cleaning system: Dustop (semi-automatic de-clogging by manual flap)
• Suction system: Venturi (compressed air) with tangential inlet and cyclonic effect
• Construction: epoxy-painted steel
• Weight: 30 kg (mentioned in product description)
• Weight (metadata): 25 kg
