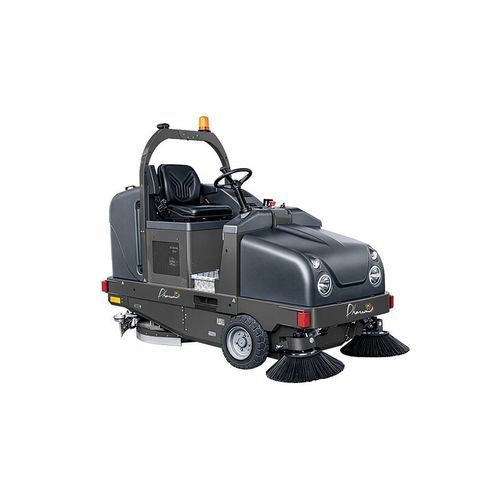

Ride-on sweeper-scrubber-dryer COMBINE115B

hydraulicbattery-poweredfully-electric

Overview
The COMBINE115B is the battery version of the COMBINE115, combining scrubber and sweeper functions to clean very large areas in a 100% electric, zero-emission environment. It performs sweeping, washing or both simultaneously and features a seated operator station, intuitive controls and integrated safety devices.

Main advantages

• 100% electric, zero emissions
• Operator comfort with seated driving position
• Sweeping, washing or combined modes
• High-level hydraulic hopper emptying for fast, hands-free discharge

Notable features

• Operator comfort
• Gradeability up to 10%
• High-level hydraulic hopper emptying

Detailed description
Equipped with a 36 V - 630 Ah battery providing up to 3 hours of autonomy, the COMBINE115B delivers a productivity of 6900 m²/h. With hydraulic transmission it reaches a maximum speed of 6 km/h and can climb slopes up to 10%. The machine is fitted with a central brush Ø300 x 850 mm and two side brushes Ø550 mm, ensuring a wide sweeping width. For washing, it offers a working width of 1.20 m and a suction width of 1.35 m. Tanks include 220 litres of fresh water and 210 litres of dirty water. The waste hopper features high hydraulic emptying (up to 1,420 mm).

Technical data / specifications

• Model: COMBINE115B
• Voltage: 36 V
• Operation: Battery
• Battery: 36 V - 630 Ah
• Autonomy: 3 hours
• Productivity: 6900 m²/h
• Maximum speed: 6 km/h
• Gradeability: up to 10%
• Central brush: Ø300 x 850 mm
• Side brushes: Ø550 mm (x2)
• Working width (washing): 1.20 m
• Suction width: 1.35 m
• Fresh water tank capacity: 220 L
• Dirty water tank capacity: 210 L
• Waste hopper emptying: high hydraulic discharge up to 1,420 mm
• Drive: hydraulic
• Operator position: seated
