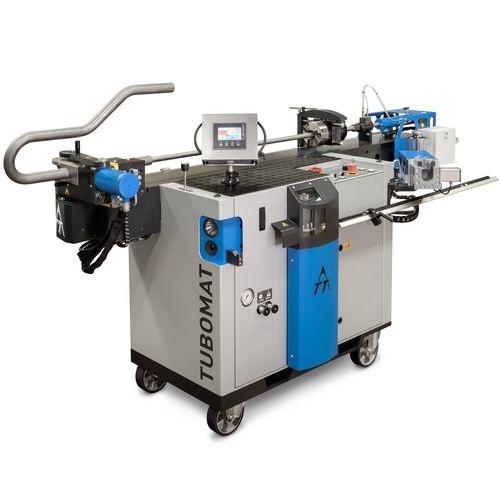

Electro-hydraulic bending machine TUBOMAT

manualtubedigital

PROCESSING CENTRE FOR HYDRAULIC PIPES HYDRAULIC PIPE PROCESSING ENGINEERED TO PERFECTION Perfect Fitting Piping for 50 years and beyond — one for all! Sawing / Deburring / Bending / Cutting ring preassembly / Flanging As the market leader in hydraulic pipe machining, you will find the TUBOMAT wherever hydraulic specialists machine pipes. A modern design, numerous detail improvements and the optimization of work processes round off the machine professional. Basic equipment / features Completely modular structure Ergonomically optimised workflows Electronic bending angle control via SIMATIC Touch Panel for program mode or 4‑fold angle pre-selection, with storage facility for 80 bending programs Interface for pipe bending data import from the PIPEFAB software Exposed and compact bending head for maximum bending space Optimised bend tooling concept Hydraulic bending drive, approved operation by hand lever valve Hydraulic pipe clamping Hydraulic pressure die positioning Hydraulic mandrel retraction Modern design Machine mobile and flexible to use Additional equipment, options and accessories Plane-of-bend device with three-jaw chuck (or mechanic collet chuck) and length stop device 2‑axis measuring system for the length and rotational position with digital displaying Follower-type pressure die (sliding guide) Anticipated mandrel retraction for optimising the bend quality Manual or automatic mandrel lubrication Pipe bending software PIPEFAB BE (Bending Edition) for installation on an external PC Pipe saw with line laser saw cut visualisation, adjustable saw feed and folding saw blade protection cover
