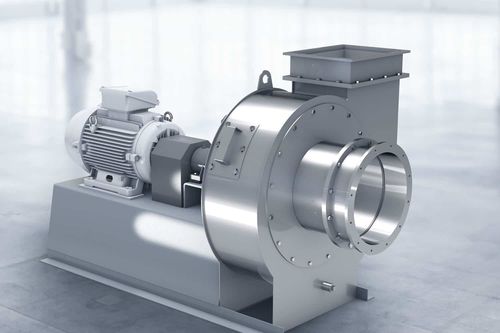

Floor-standing fan centrifugalextractiondrying
Add to favorites
Compare this product
Characteristics
- Installation
- floor-standing
- Configuration
- centrifugal
- Function
- extraction, drying, recirculation
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- anti-corrosion, multi-stage, shock-resistant, explosion-proof
- Air flow
800,000 m³/h, 1,900,000 m³/h
(28,251,733.377 ft³/h, 67,097,866.771 ft³/h)
Description
• Impeller diameters from 280 to 4,000 mm
• Temperatures from -40 to +650 °C
• Volume flow up to 800.000 m³/h (single-flow), up to 1,900,000 m³/h (double-flow)
• Pressure increase up to 33.000 Pa (single-stage), up to 56,000 Pa (multi-stage)
• Overhung or double-sided design
• Flow one or two-sided suction
• Drive power up to more than 5,000 kW
• Bearing grease- or oil-lubricated block or pedestal bearings as well as plain bearings
• Installation with steel or concrete bearing pedestal or on swing or strip foundation
Special models
• Ex-protection
• Galvanized
• Wear protection
• Corrosion protection
• Pressure resistant and pressure shock resistant
• Conveyor and ripper blading
