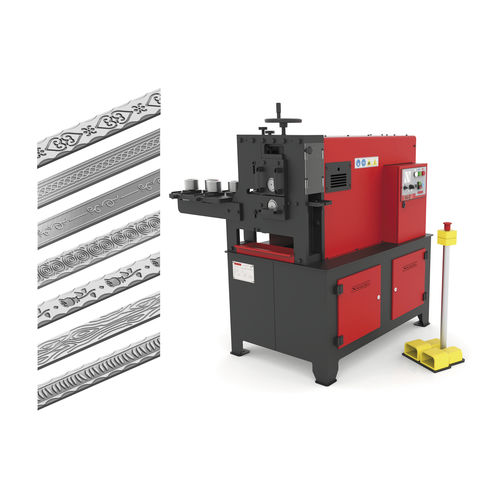

Rotary embossing unit NOA60

rotary embossing unit
rotary embossing unit
rotary embossing unit
rotary embossing unit
rotary embossing unit
rotary embossing unit
rotary embossing unit
rotary embossing unit
Add to favorites
Compare this product


Characteristics

Options
rotary

Description

The NOA60 Nargesa embossing machine cold prints and shapes iron to emboss different designs in relief, depending on the roller you are working with. Very popular for ornamental forgings to emboss designs on plates, tubes or square bars for railings, bars, fences, grilles, or hallways, adding economic, decorative and artistic value. TECHNICAL SPECIFICATIONS Electric motor: 5.5 KW Power (7.5 HP) at 1400 r.p.m. Electricity supply: 230/400 V three-phase. Electricity consumption: 22/12 A. Adjustable working speed: 0 - 10 metres per minute. Maximum capacity on square tube: 60x60 mm. Maximum capacity on solid square block: 20x20 mm. Maximum capacity on plates: 60x10 mm. Tempered gear transmission. Heavy duty roller bearings: Indispensable to guarantee the robustness and durability of the embossing machine. Tempered and ground shafts. Upper and lower shafts motorised, indispensable for good operation. Includes a straightening device with adjustable 7 rollers, 3 vertical and 4 horizontal. This mechanism ensures the material comes out perfectly straight. Large catalogue of rollers of different designs (See optional accessories at the bottom of the page. At the client's request, we can manufacture tailor made moulds, increasing the value of the finished product with exclusivity and personalization.
