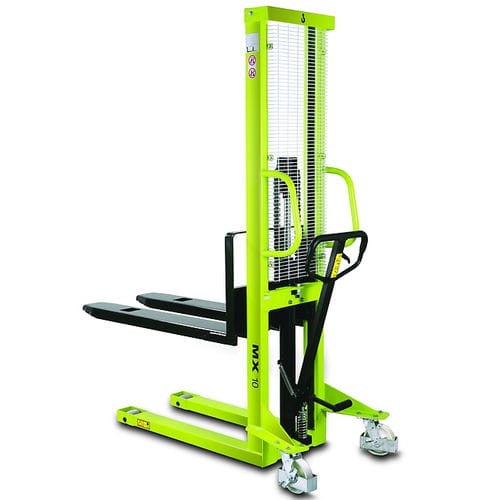

Manual stacker truck MX series
walk-behindhigh-performance

Manual stacker truck - MX series - PRAMAC-LIFTER - walk-behind / high-performance
Manual stacker truck - MX series - PRAMAC-LIFTER - walk-behind / high-performance
Add to favorites
Compare this product

Characteristics

Energy
manual
Operator
walk-behind
Other characteristics
high-performance
Carrying capacity

500 kg, 1,000 kg
(1,102.3 lb, 2,204.6 lb)

Lifting height

910 mm, 1,510 mm
(35.83 in, 59.45 in)

Free lift

910 mm, 1,510 mm
(35.8 in, 59.4 in)

Height of mast when lowered

1,490 mm, 1,970 mm
(58.7 in, 77.6 in)

Overall width

740 mm
(29.1 in)

Overall length

1,690 mm
(66.5 in)

Fork width

170 mm
(6.7 in)

Fork length

1,150 mm
(45.28 in)

Fork spacing

550 mm
(21.65 in)

Turning circle radius

1,400 mm
(55.1 in)

Description

The MX Stackers offer an excellent compromise between price and performance. A strong product the MX range has reinforced forks, steel pulley and forks precisely driven by rollers. The machine is also equipped with a foot pedal to lift forks, which considerably reduces the operator’s effort. Material Handling - Stacker trucks What is the MX pumping pedal for? The pump pedal can be used in place of the tiller to help the operator raise the forks to the desired height. What type of rudder does the MX have? The rudder is ergonomic and covered in plastic, with a useful lever for 3 different machine positions: lifting, lowering and neutral, which serve to make transport operations even lighter.
