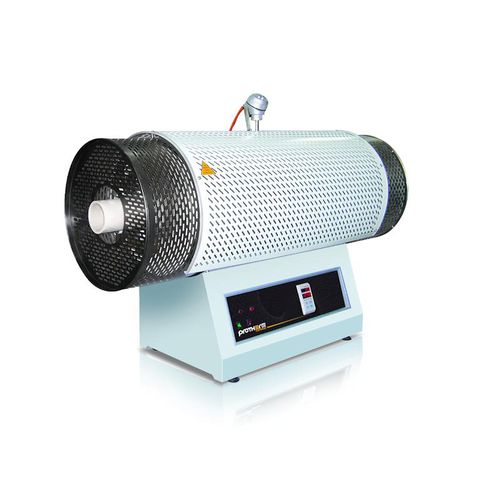

Analysis furnace PTF series
tubularelectric resistancehigh-temperature

analysis furnace
analysis furnace
analysis furnace
analysis furnace
analysis furnace
analysis furnace
analysis furnace
Add to favorites
Compare this product


Characteristics

Function
analysis
Configuration
tubular
Heat source
electric resistance
Other characteristics
high-temperature, horizontal, programmable, vertical, laboratory
Maximum temperature

1,200 °C, 1,400 °C, 1,500 °C, 1,600 °C
(2,192 °F, 2,552 °F, 2,732 °F, 2,912 °F)

Width

Min.: 365 cm
(143.7 in)

Max.: 850 cm
(334.65 in)

Height

Min.: 495 cm
(194.88 in)

Max.: 785 cm
(309.06 in)

Depth

345 cm, 350 cm, 400 cm
(135.83 in, 137.8 in, 157.48 in)

Description

PTF series tube furnaces are tube furnaces that could be used when laboratory experimentation is performed horizontally, vertically, or at specific angles. Configuration of the tilt angle, and the stable temperature environment make these furnaces suitable for many possible processes. Standard PTF series furnaces cover a range from 1100°C to 1600°C, using wire and SiC heating elements for processes. SiC heating rods installed parallel to the working tube ensuring perfect temperature uniformity and easy replacement. System Features Standard working tube of C610 and C799 Separate or integrated control system Customized controller option High-quality fiber material Galvanized coating covered epoxy paint structure System operation with solid-state-relays High level temperature uniformity Standard long working tube protruding from sides suitable for operation with flanges Electrical protection High quality heating elements ensuring a long service life Intuitive controller user interface
