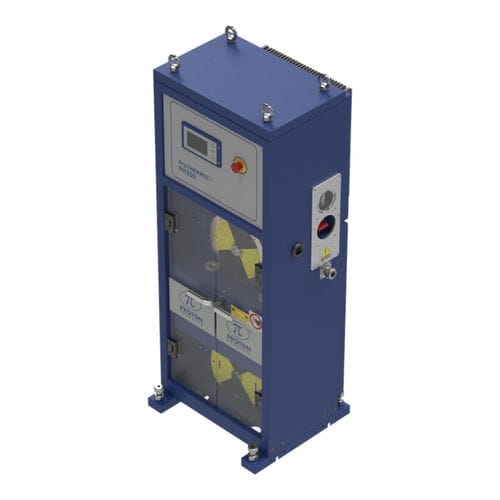

Wire preheater ProTHERMIC™ PH300

induction

The ProTHERMIC PH Series are a comprehensive range of High Frequency induction Preheaters featuring the latest advanced High Frequency solid state technology. Wire preheating is an essential operation to achieve elimination of wire moisture, improve stripping characteristics, and avoid pin hole and bare patch faults. Features For induction preheating of solid and stranded copper, copper-clad and aluminium wires up to 200°C (300°C for High Temperature (-HT) models) prior to insulation extrusion. Improve insulation-to-wire adhesion and stripping characteristics, especially at high line speeds. Highest power to wire transfer rate EEE 96% (Electrical Energy Efficiency) ensuring minimal losses and maximum use of available power. Uses parabolic control algorithm to ensure high degree of heating accuracy for all line speeds and wire sizes. Integrated “spectral radiation” InteliTHERM temperature measurement (optional) available for higher precision of wire temperature measurement and control. Preheats solid wires up to 3mm in diameter and stranded wires up to 3.2mm in diameter. Housed in rugged enclosures to survive harsh industrial environments. Controlled using a user-friendly, menu-based LCD interface display unit. Available with industry-standard communications interfaces fitted either as standard or as an option. Available in different power output models suitable for all budgets and line speeds.
