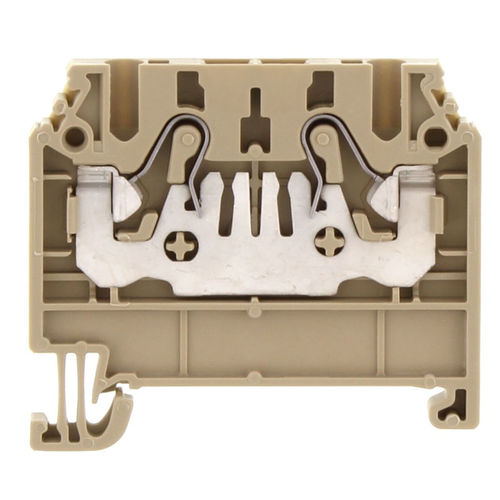

DIN rail-mounted terminal block FR1.5plastic
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Other characteristics
- plastic
- Current
16 A, 17.5 A
- Nominal voltage
300 V, 800 V
Description
Through Terminal Block
2 Connections
Wire sizes -
-
Solid - 0.2 mm² - 1.5 mm² -
Stranded - 0.2 mm² - 1.5 mm² -
Stranded with Ferrule - 0.2 mm² - 1.5 mm² -
Clamping Range - 0.2 mm² - 1.5 mm² -
Dimensions -
-
Stripped Length - 12.0 mm -
Width - 4.1 mm -
Length - 48.5 mm -
Height TS35 x 7.5 - 43.0 mm -
Connections
- -
Plug Gauge EN 60947-1 - A1 -
Insulating Material -
-
Material - PA 6.6 -
Flammability Class - UL 94 V-0 -
Temperature - -
Working Temperature - -40 - 120 °C
