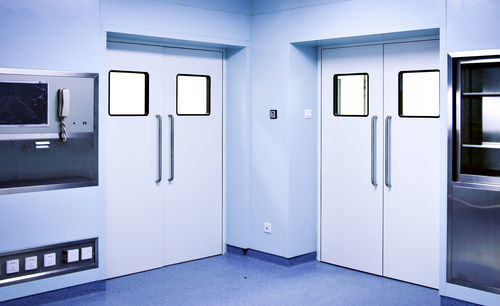

Swing door

hingedmulti-leafstainless steel

Product details
The hermetic automatic swing door is engineered to ensure hygienic isolation and controlled airtightness for critical environments. Manufactured under strict quality controls, it combines sealing systems and smooth finishes to simplify cleaning and maintain pressure differentials when required.

Key features

• Available as single-leaf or bi-parting configurations, with options for fixed leaves.
• Designed to maintain negative or positive room pressure; leaf seals laterally and at the head against the frame on closure.
• Perimeter hermetic sealing and a motorised bottom descending seal for maximum airtightness.
• Highest air permeability classification: Class D (UNE-EN 12207:2017) and Class 4 (UNE 85170:2016).
• Smooth frame surfaces and no visible screws to facilitate cleaning and hygiene.
• Concealed hinges integrated between frame and leaf; not visible when closed.
• Provision for electrical continuity to ensure correct electrostatic discharge (ESD) where required.

Available configurations

• Side swing: single leaf left or right, with or without fixed leaves.
• Central swing: two-leaf and four-leaf options, with or without fixed leaves.
• Bi-parting openings and project-specific arrangements on request.

Profiles and panel options

• Stainless steel panelling.
• HPL panelling (high-pressure laminate).
• Custom panel configurations and mixed finishes available.

Operator compatibility & accessories

• Compatible with operators designed for high-traffic automatic swing doors; examples and recommended ranges available in product documentation.
• Wide range of activation and safety accessories: hands-free systems, push-buttons (including elbow buttons), selector switches, safety devices, glazing and shading options to suit hygienic and operational needs.

Technical specifications

• Product type: Hermetic automatic swing door (single or bi-parting).
• Airtightness classification: Class D (UNE-EN 12207:2017) / Class 4 (UNE 85170:2016).
• Pressure control: Suitable for environments requiring positive or negative pressure; sealed at sides, head and with bottom descending mechanical seal.
• Sealing system: Perimeter hermetic seal plus motorised bottom seal.
• Hinges: Concealed, integrated between frame and leaf.
• ESD: Provision for electrical continuity to enable electrostatic discharge protection.
• Finish options: Stainless steel, HPL, mixed finishes.
• Leaf configurations: Single leaf (L/R), two leaves, four leaves, with or without fixed leaves.
• Documentation: Technical datasheets and sector catalogues available for download.
