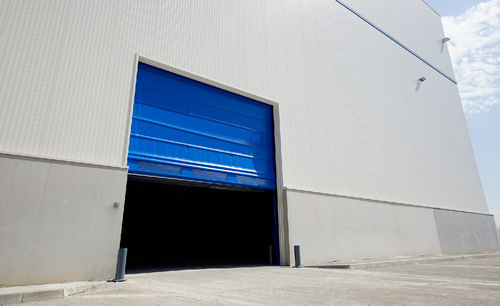

Fold-up door

steelstainless steelfabric

Overview The high-speed fold-up door is designed for intensive use on large outdoor openings and offers high resistance to drafts and wind. Its airtight fabric enables isolation and climate control of different working areas to improve operator comfort. Reinforcing crossbars on the fabric protect interiors from adverse weather; large available sizes and wind resistance make it particularly suitable for external industrial closures.

Main features

• Designed for intensive use in large outdoor openings
• High resistance to drafts and wind
• Airtightness to isolate and climatise working areas
• Reinforcing crossbars on the fabric for protection against adverse environmental conditions
• Multiple configuration and customisation options to suit project requirements
• Standard safety mechanisms to detect obstacles and allow manual raising in case of power failure

Optional equipment

• Motor position: lateral or frontal; right or left
• Structure in 304 stainless steel
• Motor cover available
• Silk screening on fabric (on request)
• Adjustable opening speed up to 1.5 / 1.0 m/s depending on dimensions
• Opening option systems: UPS, remote control, radars, sensors
• Coloured or silk-screened custom fabric

Colors

• RAL 9005
• RAL 8014
• RAL 7016
• RAL 7037
• RAL 7038
• RAL 5010
• RAL 5005
• RAL 5002
• RAL 6026
• RAL 3002
• RAL 2004
• RAL 1003
• RAL 1014
• RAL 9016

Peepholes

• Shape options: square or rectangular
• Position: horizontal or vertical
• Quantity: multiple peepholes available

Frequently Asked Questions (selected)

• What documentation and certifications does a high-speed fold-up door have? In accordance with product standard EN13241, doors include a user manual, declaration of performance, CE marking and maintenance book; documentation is available in several languages.
• What comprises a high-speed fold-up door? It consists of two side stiles serving as guides for the flexible fabric, which folds up at the top via straps and winding pulleys driven by a gear motor and drum that control ascent and descent.
• What safety systems do fold-up doors have? A safety photocell located on the door guide reverses the manoeuvre when an obstacle is detected; the lower fabric edge includes a safety band that reopens the door if touched; a photocell barrier can be incorporated as an alternative.

Technical specifications

• Maximum dimensions: up to 7000 x 7000 mm
• Use: suitable for indoor and outdoor installations
• Wind resistance: Class 2 (up to 6000 x 6000 mm)
• Structure: lacquered steel in selectable RAL colour (option for 304 stainless steel)
• Opening speed: standard fixed 0.8 / 0.8 m/s; optional adjustable up to 1.5 / 1.0 m/s depending on dimensions
• Fabric: tear resistance and tensile resistance compliant with applicable standards; options for custom coloured or silk-screened fabric
• Safety mechanisms: obstacle-detecting photocell, safety lower band, manual raising in power failure
• Drive and control: gear motor and drum mechanism; standard drive via internal and external push buttons; optional control systems (UPS, remote control, radars, sensors)
• Motor position options: lateral or frontal; right or left
