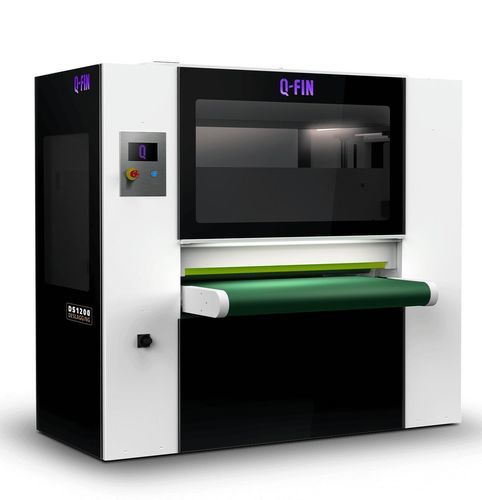

Belt deburring machine DS1200

cuttingedge roundingfinishing

Stand-alone slag hammer for removing heavy slag Let your team work finer and faster with the DS1200. Our unique stand-alone solution removes slag from sheet metal parts up to 1200 mm wide. This prevents damage and contamination in your production process. Deslagging is a labour-intensive, dirty job which still often involves the use of a hammer and chisel. Or an electrically powered hand-held machine is used. Because of the heavy workload for both the operator and the hand machine, these hand machines have to be replaced regularly. This causes high costs, an extra waste flow and possible health problems (e.g. HAVS) for the operator. The manual removal of slag is time-consuming and burdensome for both the operator and the machines, leading to high costs and wear. The DS600 and DS1200, specifically developed by Q-Fin, automatically remove slag after plasma or oxy-fuel cutting. These machines can be easily integrated into any production line, removing slag before the product reaches the deburring machine for edge rounding. The removed waste material is collected in a bin and can be disposed of as scrap. By performing slag removal separately, contamination in the deburring machine is prevented. Both models are ergonomically designed with a touchscreen control for ease of use. The slag is effectively removed by two counter-rotating slag breaker rollers, which strike the product twice per revolution. The result is a flat product ready for further finishing. - Efficient and fast deslagging - Easy to integrate into the production line - Powerful magnetic support - Two slag hammer brushes - Clear, intuitive HMI touchscreen - Prevents flying debris - No contamination and damage in the finishing machine - Conveyor belt speed: 0.3-5 m/min - Product fixation: Magnet system - Minimum workpiece dimensions: 65 x 65 mm - Maximum workpiece width: 1200 mm - Maximum workpiece height: 150 mm - Machine power supply: 400 V | 50 Hz | 16 A | 8 kW - Dimensions (L x W x H): 1795 x 2210 x 1085 mm - Weight: 1,400 kg
