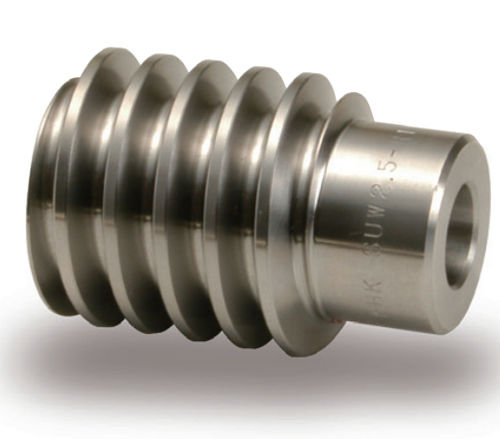

Worm gear KSUW2-R2spiroidhubstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Teeth
- spiroid
- Other characteristics
- hub, stainless steel
Description
Module 2, 2 Start Stainless Steel Worm with Plain Bore
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$70.17$67.05$63.92$62.64Request For Quote
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Worm Spec.7°25? R.H. /2 Thread/31mm PD
Bore/set Screw/kwy12 /No S.S./No Kwy
ConfigurationWith Bore / 1 Hub
Material / QualityStainless Steel / Commercial
Face Width (FW)32.00 mm
Overall Width46.00 mm
Outside Dia. (O.D.)35.00 mm
Hub Dia.14.00 mm
Module( Pitch)2.00
Pressure Angle20.0 °
Catalogs
No catalogs are available for this product.
See all of Quality Transmission Components‘s catalogsOther Quality Transmission Components products
