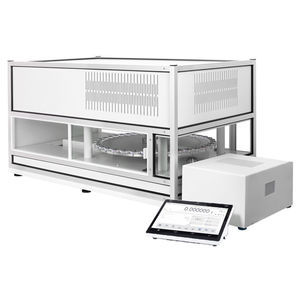

Automatic mass comparator AVK 1000.5Y series

vacuum

RADWAG-manufactured AVK-1000 automatic vacuum mass comparator is intended for national metrological institutes that transport and maintain the national reference mass standard of 1 kg. The comparator is intended for weighing mass standards and silicone spheres of 100 mm diameter. It enables comparison of up to 6 prototypes of max 1kg mass. The repeatability of the process is of 0.3 µg and readability of d = 0.1 µg. A specially designed vacuum chamber enables carrying out measurements in a vacuum of 10-6 mBar capacity or in atmosphere containing noble gases. AVK-1000 is equipped with suspended weighing pan that eliminates eccentricity errors. Standard version of the mass comparator features thermo-hygro-barometer for testing ambient conditions with great accuracy: pressure of 0.001hPa, humidity of 0.01% and temperature of 0.001 °C. The comparator is also equipped with high quality vacuum gauge. The AVK-1000 vacuum mass comparator can be equipped with the LOAD LOCK system for carrying mass standards. The system enables switching or adding artefacts without changing the atmosphere inside the main chamber. With the use of a special chamber for mass standards switching the whole process is 90% shorter. During mass standards replacement carried out without the use of the LOAD LOCK system, the air enters the main chamber of the mass comparator. After each opening of the chamber it is necessary to pump the air out in order to obtain required vacuum value. The vacuum mass comparator needs approx. 48 hours in order to obtain vacuum that ensures measurement repeatability.
