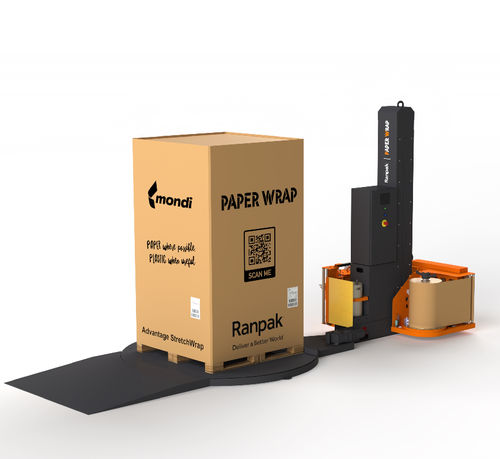

Kraft paper wrapping machine PaperWrap
turntableautomaticsemi-automatic

Kraft paper wrapping machine - PaperWrap - Ranpak BV - turntable / automatic / semi-automatic
Kraft paper wrapping machine - PaperWrap - Ranpak BV - turntable / automatic / semi-automatic
Kraft paper wrapping machine - PaperWrap - Ranpak BV - turntable / automatic / semi-automatic - image - 2
Kraft paper wrapping machine - PaperWrap - Ranpak BV - turntable / automatic / semi-automatic - image - 3
Add to favorites
Compare this product

Characteristics

Type
turntable
Operating mode
automatic, semi-automatic
Product applications
pallet, for cardboard boxes
Other characteristics
with roller conveyor, kraft paper
Maximum wrapping height

2,000 mm, 2,500 mm, 2,800 mm
(78.74 in, 98.43 in, 110.24 in)

Maximum pallet length

1,250 mm, 1,600 mm
(49.21 in, 62.99 in)

Maximum pallet width

1,250 mm, 1,300 mm
(49.21 in, 51.18 in)

Capacity

25 p/h, 40 p/h, 70 p/h

Min.: 20 p/h

Max.: 70 p/h

Description

The most sustainable pallet wrapping solution PaperWrap represents a new paradigm for sustainability in pallet wrapping in the form of an innovative solution that replaces traditional plastic stretch film. Instead of retrofitting existing plastic stretch-wrapping machines, PaperWrap’s machines are designed from the ground up to optimally utilize the mechanical properties of Ad/Vantage StretchWrap, a fully recyclable kraft paper developed by Mondi that can stretch and resist punctures. These properties make it ideal for replacing plastic stretch film used for pallet wrapping without sacrificing strength, stability, or productivity. PaperWrap integrates into any operation with multiple solution options PaperWrap offers three models to suit customer automation needs: semi-automatic stand-alone units, fully automatic stand-alone machines, and fully automatic line integration systems. All three solutions help reduce carbon footprints and support circularity goals. Semi-automatic Stand Alone - Automatic wrapping process - Manual feeding - Minimal space requirement - Wrapping up to 25 pallets/h - Paper Folding Device: best stability with lowest paper consumption - Mondi Paper | up to 62% lower carbon footprint - Higher pallet stability during pallet transport Fully Automatic Stand Alone - Automatic wrapping process - Automatic feeding (in/out) - Wrapping up to 40 pallets/h - Option for integrated printing system - Able to handle Jumbo Reels - Paper Folding Device: best stability with lowest paper consumption - Mondi Paper | up to 62% lower carbon footprint - Higher pallet stability during pallet transport
