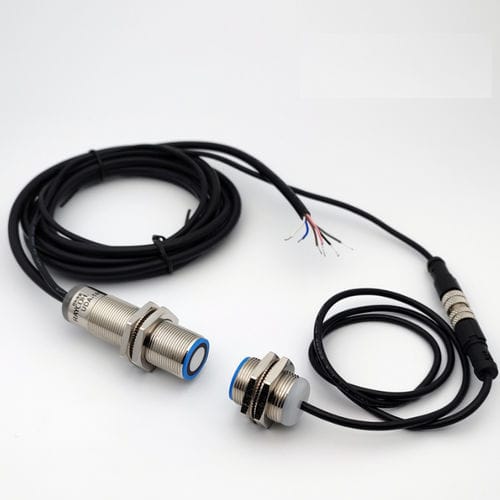

Ultrasonic sensor UDA-18GM

M18/M30/12 external thread opposite installation design is compatible with the thinnest and thickest material détection to the greatest extent. ♦ Materials with différent thicknesses ranging from 0.01 mm to 3mm can be detected. ♦ Compatible with paper, plastic film, Silicon wafer and métal sheet, etc. ♦ Can be use for detecting transparent material. ♦ 3 switch outputs Ultrasonic sensors show excellent performance in the application of non-contact positioning and distance measurement. It is not affected by color and shape, and is not limited by the material of the measured object, so it is widely used in industrial automation scenes. Target market of ultrasonic sensors: • Industry - • Packaging Machiner • Mobile Equipment - • Manufacturing and equipment engineering • Process equipment - • New energy manufacturing equipment • Material handling - • Gâte control • Monitoring and control of water level and material level • Printing, paper and post-press processing - • Textile machinery • Intelligent city environment détection and control Features >3 output control >easy to teach-in according to any material Détails >suitable for various materials >3 npn or pnp output >The teach-in function is realized by the pink line >Temperature compensation >Standard working voltage 10-30V Electrical data Response time - 10ms operating voltage - 10-30V DC, reverse polarity protection. LED green light - Single sheet detected. LED yellow light - No target (air) LED red light - Double sheet detected. overpower protection - 200mA, red light and green light flashing at the same time. impédance - >4KQ operational current 3x200mA short circuit protection/overload protection -
