Electric energy meter for DC applications DC22M
single-phaseDIN railRS-485

electric energy meter for DC applications
electric energy meter for DC applications
electric energy meter for DC applications
electric energy meter for DC applications
Add to favorites
Compare this product


Characteristics

Type
single-phase
Assembly
DIN rail
Other characteristics
RS-485, Modbus, Modbus RTU, with LCD display, pulse output, for DC applications
Voltage

Max.: 1,000 V

Min.: 5 V

Primary current

Max.: 2,000 A

Min.: 1 A

Description

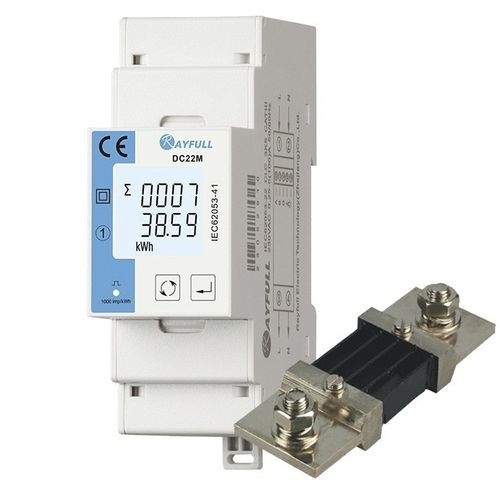

DC22M series are designed for direct current energy analysis and energy metering. The products adopt shunt access mode. The current of the shunt supports a maximum of 2000 A. The shunt supports positive and negative connection modes to improve the wiring flexibility of the shunt. This series of meters can measure voltage, current, power and positive and negative charge in the DC system. The DC22M series have RS485 communication interface with highest baudrate 38400bps, supporting Modbus or DLT645 protocol for remote reading. At the same time, the large-screen LCD and touch buttons help users to view and set various measurement parameters on site. Password protection function is added to greatly improve the data security. Positive and Negative Connection modes Bidirectional Energy and Power Measurement Pulse Output Communication: RS485 Modbus RTU/DLT645-2007 CE/ROHS Approved Communication Specifications • Interface and Protocol : 2-Wire RS485; Modbus RTU(Default), DL/T645-2007(Optional) • Baudrate : 1200, 2400, 4800, 9600(Default), 19200, 38400 bps • Parity : None(Default), Even, Odd • Stop Bit : 1(Default), 2 • Response Time : <100ms • Bus Type : Semi-duplex • Distance : Max. 1000m • Bus Load : Max. 64pcs Environment Specifications • Operation Temperature : -25 ~ +55℃ • Storage Temperature : -40 ~ +80℃ • Humidity : <90%, no condensing • Pollution Degree : 2 • Altitude : <2000m • Vibration Frequency : Range: 10~150Hz, Refer to IEC 60068-2-6
