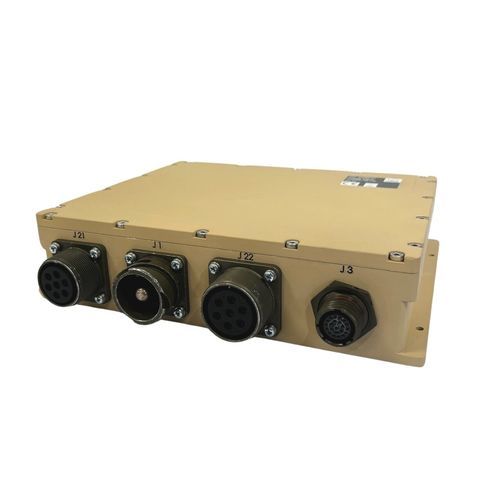

12-channel PDU Power Rider 12CH

configurableDCMIL-STD

The Power Rider 12CH Mil Grade is a high-performance, multi-channel electronic circuit breaker designed for demanding environments. Built with solid-state technology, it delivers precise power control, real-time monitoring, and intelligent protection for mission-critical applications. Supporting up to 25A per channel and operating across an 8-48V DC range, it ensures reliable power distribution with three layers of protection against overcurrent, overvoltage, and overheating. With configurable parameters, networked circuit breaker support, and multiple communication interfaces (CAN bus, Ethernet, RS-422/485), it offers flexible integration for aerospace, defense, and industrial systems. Product Specs - Channels: 12 individual channels, each supporting up to 25A - Power Supply: Recommended operating voltage: 8-48 VDC (absolute max not specified) - Current Handling: Total unit current capacity up to 240A - Operating Temperature Range: -40°C to +71°C Communication and Feedback Options - Communications: CAN bus (50 kbps to 1 Mbps, J1939), RS-422/485, Ethernet (UDP)Control - Modes: Configurable custom logic control, trip recovery, and fault protection - Feedback: Real-time monitoring of input voltage, output voltage, load current, and temperature Features - Multi-Channel Management: Controls 12 independent channels with integrated circuit breaker, relay, and contactor functions. - Advanced Protection: Implements I²t, over-current, over-voltage, and over-temperature software-based protections, with hardware trip cutoff and thermal fuse redundancy.
