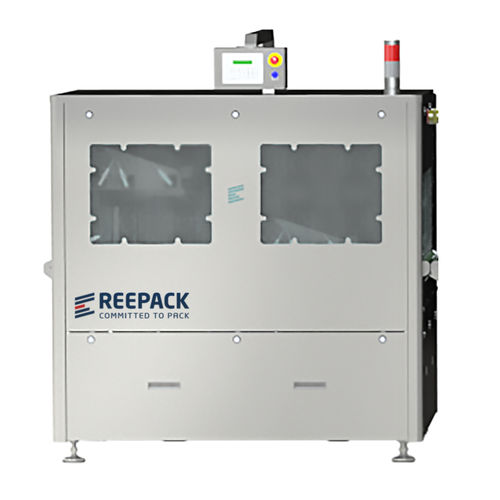

Automatic drying tunnel DT 100
Add to favorites
Compare this product
Characteristics
- Applications
- automatic
Description
Drying Tunnel to dry bags in vacuum suitable for a subsequently labelling.
Main features of DT100:
- Frame in stainless steel AISI304
- Fully stainless steel IP65 protection
- HMI controller display
- 2 upper air blades following product shape
- 1 bottom air blade in exit for dry finishing
- Automatic product loading and unloading
Technical Data
Conveyor width: 740 mm
Height belt conveyor: 880 mm
Power supply: 3/N/PE400V AC 50 Hz
Power Consumption: 18 Kw
Overall dimension: 1600 x 1490 x H1770 mm
Max product height: 300 mm
