Light curtain enclosure WT series

watertightIP69Kprotection

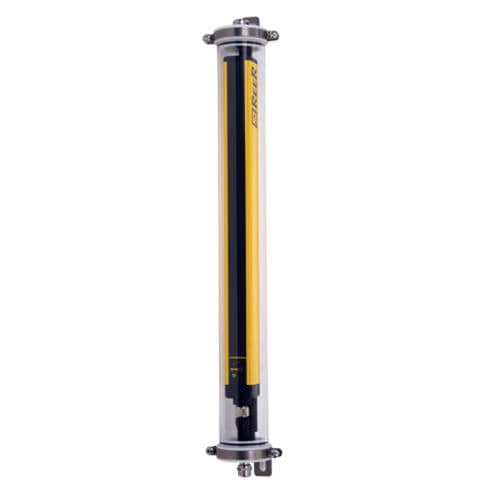

EOS4 and EOS2 WTF and WTHF versions IP 69K watertight enclosure, with or without heating system Watertight enclosures allow light curtains and light grids to be used in a harsh working environments with exposure to water and steam. Thanks to its inert (non-toxic) components, no residuals are left when the light curtains are washed down or when they come directly in contact with food. This makes WTF and WTHF enclosures suitable for the Food & Beverage industry. The watertight enclosure is made of: PMMA (polymethyl methacrylate) transparent enclosure POM-C (acetal resin DELRIN®) sealing caps Anti-condensation system trough integrated GORE valve POM-C and Stainless steel fastening brackets (AISI 316L) The small EOS WTF and WTHF cylindrical enclosure (only 56mm diameter) is IP 69K protection rate tested and can withstand up to 80bar of water jets pressure at the temperature of 80°C. Enclosure incorporates a valve to drain humidity and avoid condensation. WTHF version (Heated) has a thermostatically-controlled heating system and can work down to 25° C.
