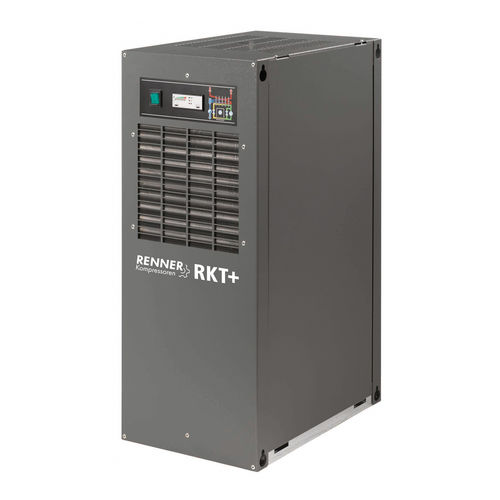

Refrigerated compressed air dryer RKT+ 0035 – 0450
compacthigh-performance

refrigerated compressed air dryer
refrigerated compressed air dryer
Add to favorites
Compare this product

Characteristics

Technology
refrigerated
Other characteristics
compact, high-performance
Capacity

Max.: 7.5 m³/min (264.86 ft³/min)

Min.: 0.58 m³/min (20.48 ft³/min)

Description

The high-performance refrigeration dryers of this series is equipped with an electronic control to ensure a safe pressure dew point and provide a constant high compressed air quality. The RKT+ dryers are designed to be mounted on RENNER compressors and are also suitable for suspension on a bracket or wall. By integrating an air-to-air heat exchanger and a refrigerant-to-air heat exchanger, the compressed air is dried extremely efficient and saved energy. The condensate is discharged fully automated and without pressure loss, by time or level-controlled condensate drain. The microcontroller specially developed for the RKT+ series controls the condensate solenoid valve and the fan and displays the pressure dew point. Maintenance alerts are also displayed. The RKT+ dryers are operated with 230 Volt AC and delivered ready for connection and operation. Technical specifications Volume flow: 0.58 – 7.50 m³/min Power consumption: 0.18 – 1.18 kW Advantages Low space requirement due to compact size and mounting option Powerful and reliable: Stable and low pressure dew point Corrosion-resistant and lightweight due to aluminum heat exchangers Effective drying due to two integrated heat exchanger systems Energy efficient due to pre-cooling or drying in air-to-air heat exchanger Ozone-friendly refrigeration Highly controllable thanks to specially developed electronic microcontroller Fully automatic steam trap with time-controlled or level-controlled steam trap
