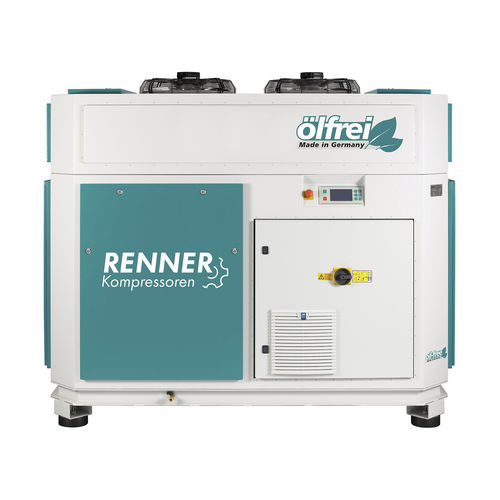

Screw compressor RSWF D series
airelectricstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Other characteristics
compact, energy-saving, cooled
Pressure

6 bar, 8 bar, 10 bar, 13 bar
(87.02 psi, 116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 22.55 m³/min
(796.35 ft³/min)

Min.: 1.55 m³/min
(54.74 ft³/min)

Power

Max.: 120 kW
(163.15 hp)

Min.: 18.5 kW
(25.15 hp)

Length

2,074 mm, 2,157 mm, 2,561 mm
(82 in, 85 in, 101 in)

Width

942 mm, 1,307 mm, 1,632 mm
(37 in, 51 in, 64 in)

Height

1,344 mm, 1,754 mm, 1,853 mm
(53 in, 69 in, 73 in)

Weight

Max.: 2,390 kg
(5,269 lb)

Min.: 860 kg
(1,896 lb)

Description

RENNER RSW/RSWF compressors provide 100% pure, clean air that meets the ISO 8573-1 “CLASS 0” (2010) standard. This guarantees zero risk of contamination and unsafe products. The utility patent-protected, direct-driven compressors use water for sealing and lubrication. The water draws the compression heat from the compressor and permanently supplies the water-injected friction bearings. Due to the integrated water treatment, the circulation water always has a very high quality and there are no limescale deposits. The compressors are available as both air and water cooled versions. The low operating temperature of the water-injected air ends has an extremely positive effect on energy, maintenance and operating costs. The low speeds mean that the units are also extremely quiet. In addition to the standard version, the RSWF series of water-injected compressors with variable speed control is available for economical operation with highly fluctuating compressed air requirements. Both variants are equipped as standard with the RENNERtronic Plus control and the efficient IE3 energy-saving motor. Advantages High energy efficiency due to design features, components and equipment options such as variable speed control and heat recovery High-quality tested compressed air quality due to 100% oil-free production with quality certificate from an independent institute Quiet thanks to low speeds Uniform, low-pulsation compressed air flow due to infinitely variable compression in the screw air end Low operating and maintenance costs thanks to lower temperature progression Low space requirement due to compact design
