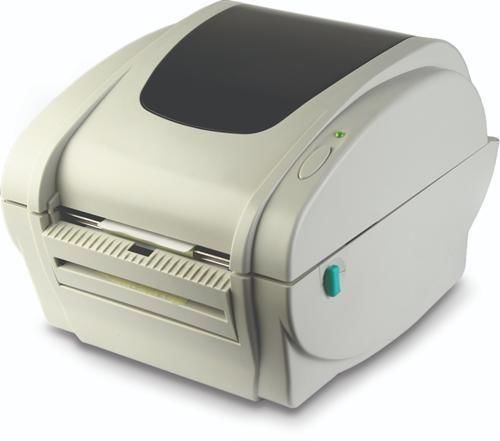

Direct thermal label printer LP542S
with softwareUSB

Direct thermal label printer - LP542S - Rice Lake Weighing Systems - with software / USB
Direct thermal label printer - LP542S - Rice Lake Weighing Systems - with software / USB
Direct thermal label printer - LP542S - Rice Lake Weighing Systems - with software / USB - image - 2
Add to favorites
Compare this product

Characteristics

Technology
direct thermal
Other characteristics
with software, USB
Resolution

Min.: 203 dpi

Max.: 203 dpi

Print width

Min.: 108 mm
(4 in)

Max.: 108 mm
(4 in)

Print speed

Min.: 0 mm/s

Max.: 127 mm/s

Description

Product Overview
  • Fitted front peel mechanism with label present sensor


Approvals
  • CE Mark
  • EU Legal-for-Trade symbol
  • WARNING: Cancer and Reproductive Harm (California Proposition 65)


Product Specifications
  • Printing Resolution: 203 dpi (8 dots/mm)
  • Print Speed: Up to 127 mm/sec
  • Maximum Print Length: 1016 mm
  • Maximum Print Width: 108 mm
  • Label Length: From 10 mm up to 999 mm
  • Label Width: From 20 mm up to 112 mm
  • Label Thickness: From 0.06 mm up to 0.19 mm
  • Label Roll Dimensions: 127 mm OD (5.0 in OD)
  • Fonts: 8 fixed alphanumeric fonts, 1 TrueType font with rotation at 0, 90, 180, and 270 degrees
  • Available 1D Bar Codes: Code 39, Code 39C, Code 93, Code 128uCC, Code 128 (Subset A, B, C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN & UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China Post, ITF-14, EAN-14
  • Available 2D Bar Codes: PDF-417, MAXICODE, DATA MATRIX, QR Code
  • Memory: 2 MB DRAM, 2 MB Flash Memory
  • Interfaces: RS-232, Parallel, USB 1.1
  • Standard Software Programming: Creation of customized labels with logos, images, weight data, and bar codes
  • Dimensions (WxDxH): 240 x 200 x 164 mm
  • Operating Temperature: 5°C to 40°C
  • Power Supply: Switching 100/240 VAC; external adapter 24 V 3.75 A DC


Additional Product Information
  • Compatible with DFW, TRI, 3590, and TRS Indicators (as noted in parts/description)
  • Part/kit options and consumable label rolls are available (multiple label roll formats and part numbers listed in parts/options)


Technical specifications
  • Printing Resolution: 203 dpi (8 dots/mm)
  • Print Speed: Up to 127 mm/sec
  • Maximum Print Length: 1016 mm
  • Maximum Print Width: 108 mm
  • Label Length Range: 10 mm to 999 mm
  • Label Width Range: 20 mm to 112 mm
  • Label Thickness: 0.06 mm to 0.19 mm
  • Label Roll OD: 127 mm (5.0 in)
  • Fonts: 8 fixed alphanumeric; 1 TrueType with 0/90/180/270 rotation
  • 1D Barcodes Supported: Code 39, Code 39C, Code 93, Code 128uCC, Code 128 (A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, MSI, Plessey, POSTNET, China Post, ITF-14, EAN-14
  • 2D Codes Supported: PDF-417, MAXICODE, DATA MATRIX, QR Code
  • Memory: 2 MB DRAM, 2 MB Flash
  • Interfaces: RS-232, Parallel, USB 1.1
  • Dimensions: 240 x 200 x 164 mm
  • Operating Temp: 5°C to 40°C
  • Power: Switching 100/240 VAC; external adapter 24 V 3.75 A DC
