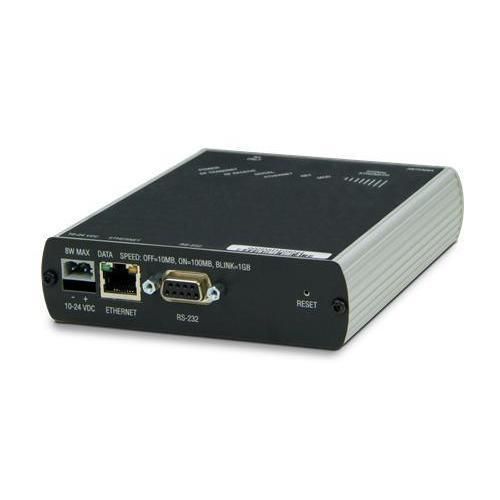

WiFi Ethernet bridge 166630

wirelessindustrial

Overview
A compact industrial broadband wireless Ethernet bridge providing serial and Ethernet connectivity for harsh environments. Configurable as access point, wireless bridge, repeater or client to support diverse network topologies.

Key features

• Dual-band operation: 2.4 GHz and 5 GHz
• Supports 802.11a/b/g/i wireless standards
• Multiple modes: access point, wireless bridge, wireless repeater, client
• Security: WPA2 (128-bit AES-CCM), WPA, WEP, MAC filtering
• Programmable transmit power: up to 20 dBm (2.4 GHz) and 18 dBm (5 GHz)
• Receiver sensitivity down to -90 dBm (1 Mbps)
• Designed for extreme environments: operating temperature -40 °C to 75 °C; high vibration/shock; hazardous location ratings

Specifications
Frequency bands (varies by country): 2.412 GHz to 2.462 GHz (FCC); 2.412 GHz to 2.472 GHz (ETSI); 5.150 GHz to 5.250 GHz (FCC/ETSI); 5.725 GHz to 5.850 GHz (FCC)

Wireless standards: 802.11a, 802.11b, 802.11g, 802.11i

Programmable transmit power (varies by country): 2.4 GHz: up to 100 mW (20 dBm); 5 GHz: up to 64 mW (18 dBm)

Channel data rates (modulation): 802.11b: 11, 5.5, 2, 1 Mbps (DSSS/BPSK/QPSK/CCK); 802.11g: 54–6 Mbps (OFDM); 802.11a: 54–6 Mbps (OFDM)

Receiver sensitivity (typical): -90 dBm @ 1 Mbps; -85 dBm @ 11 Mbps; -82 dBm @ 24 Mbps; -75 dBm @ 54 Mbps

Channel selection (varies by country): channels 1 to 13 (802.11a)

Security: WPA2 - 802.11i with 128-bit AES-CCM, WPA TKIP, WEP, MAC ID filter, admin password

FRP Enclosure Dimensions
A: 8.5 in (216 mm)
B: 10.5 in (267 mm)

Certifications & Environment
Designed for hazardous locations with ratings such as UL Class 1, Division 2 and ATEX Zone 2. Suitable for industrial automation, remote monitoring and field communications where wide temperature range, vibration and shock resistance are required.
