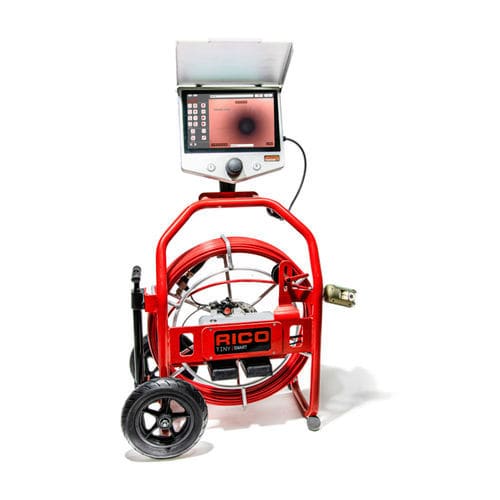

Camera inspection system TINY|SMART

visualfor defect detectionfor pipes

The TINY|SMART is lightweight and compact and specially designed to optimally handle any application in and around the building, yet the push bar system is extremely robust and of high quality. With a total weight of approx. 23 kg * and an extendable push handle, the TINY|SMART can be easily transported to any location. The small footprint allows the unit to be used even in the most confined spaces. The foldable, removable monitor allows the system to be stored in a space-saving manner. The system is compatible with all common RICO cameras. Thus, the TINY|SMART is suitable for the inspection of sewers from Ø 30 mm to Ø 300 mm. A super-bright (1000cd/m²) touch display (12.1″) with intuitive menu navigation enables perfect working even in direct sunlight. The integrated Linux PC contains basic software that enables image and video recording as well as text writing. Central control unit The super-bright (1000 NIT), large display enables flawless working even in high sunlight. With a size of 12.1 inches, the display is larger than most commercially available tablets. The intuitive menu navigation enables quick familiarization and safe operation. The desk can be operated flexibly with the finger, many common protective gloves, a stylus or a connectable keyboard. Energy supply To offer the highest degree of flexibility, the TINY|SMART can be operated both mains-independently, with up to two rechargeable batteries, as well as in mains operation. To significantly increase the operating time, there is not only the standard battery with a runtime of up to 4 hours, but also the large battery with a runtime of up to 8 hours.
