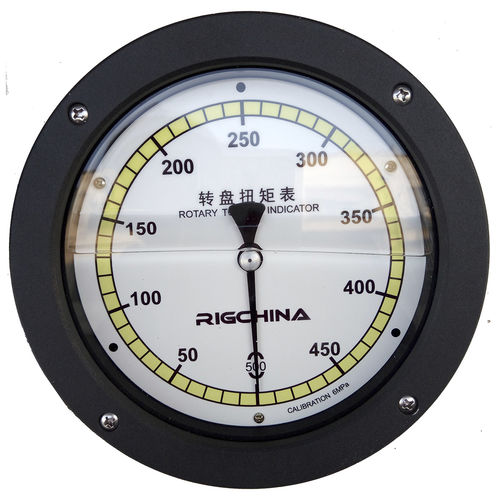

Torque indicator 8N02

dial

Delivers reliable torque measurements for rigs that use chain-driven rotary tables Available in box-mount or panel-mount configurations, the RIGCHINA Hydraulic Rotary Torque System provides accurate indications of changes in torque for rigs that use chain-driven rotary tables. Each system includes an Idler assembly and a Gauge. Technical Specification: 1. Output hydraulic pressure signal range: 0~6MPa 2. Tension pulley external diameter: F305mm 3. High-pressure cylinder diameter: F65mm 4. Minimum height of sensor: 355.5mm 5. Operating temperature: -40. ~+85 ºC 6. Non-linear error: 0.5% Features: 6-inch fluid-filled Gauge Available in 500 and 1,000 points Gauge has operator-adjustable dial to zero out drill string in order to monitor torque at the bit Standard 25-foot hose, with other hose lengths available Rugged Steel Sprocket available (replaces rubber wheel located in Idler assembly) To order specify: Bracket-mount or panel-mount gauge Gauge capacity Chain size Chain width (single or double) Hose length (25 feet is standard)
