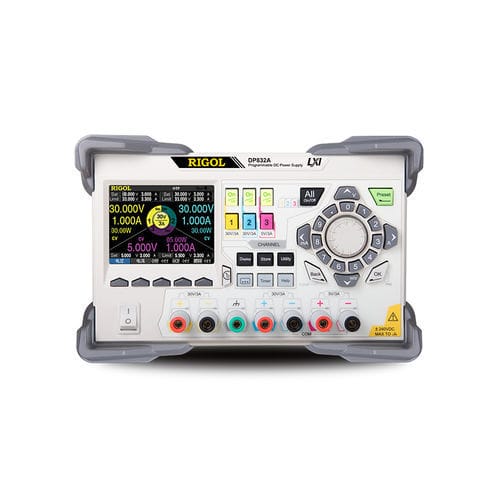

Programmable power supply DP800 series

tabletopDC/DClinear

DP800 series includes single output, two output and three output programmable linear DC power supply. They have pure output, excellent performance indicators, multiple analysis functions, rich interfaces, and can meet the diverse testing needs. Low Ripple Noise: <350uvrms / 2mvpp Ultra low noise design to meet the user's demand for high purity power supply Fast Transient Response Time: < 50us The response time of the power supply shall not exceed 50uS, so as to meet the user's demand for rapidly changing voltage waveform. Standard Timing Output When the timer is on, the instrument will output preset voltage and current (up to 2048 groups). The user can set the number of output groups of the timer, and set the output voltage, current and timing time of each group. (take dp831a as an example) Built in V / A / W Measurement and Waveform Display Real time measurement and display the change trend of V / A / W parameters at the same time. (take dp831a as an example) Output Analysis, Monitoring, Setting Preset and Other Functions It has the functions of output analysis, monitoring, setting preset, etc. to realize all-round monitoring analysis (take dp831a as an example) Original 3.5-inch Tft Wide Screen Display Traditional numerical interface and instrument panel interface can be switched, easy to operate, intuitive and clear
