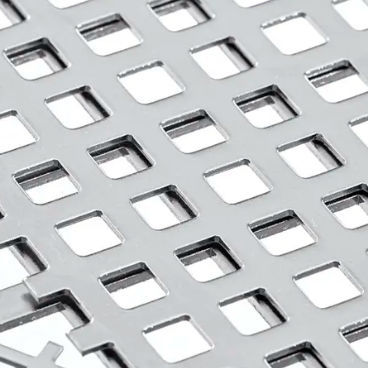

Perforated sheet metal

decorativesteelstainless steel

Overview
Square hole perforated metal provides a versatile solution for both functional and decorative applications. Its design balances airflow efficiency and strength, making it ideal for industrial and architectural use.

Summary
Square hole perforation is characterised by a uniform, grid-like pattern offering predictable open area and load distribution while providing a clean, modern aesthetic.

Key benefits

• High open area: enables efficient airflow and material passage for ventilation and filtration.
• Structural strength: uniform pattern distributes loads evenly for durability and stability.
• Design versatility: suitable for machine guards, facades, acoustic panels and industrial screening.
• Aesthetic appeal: clean lines and regular geometry support modern architectural finishes.

Applications examples

• Safety and ventilation: guards for machinery and server cabinets to ensure airflow and protection.
• Building and architecture: facades, sunscreens and balustrades combining aesthetics and function.
• Filtration and drying: food processing, water treatment and industrial filters for precise separation and airflow control.
• Industrial screening: recycling, bulk handling and sorting processes for material classification.
• Acoustics: acoustic panels and ceiling tiles for noise reduction with modern design.

Technical information
Arrangement of holes
Square holes (C) can be arranged with rectangular pitch (U) in straight rows for maximum open area and predictable strength; diagonal pitch (M) at 45° offers distinct visual options with moderate open area; staggered pitch (Z) balances open area and structural stability.

Pitch types (definitions)

• U = Rectangular pitch
• M = Diagonal (45°) pitch
• Z = Staggered pitch

Beginning and end of perforated areas
Three typical end conditions are common:

• Closed end pattern: special tooling produces a finished edge for a continuous decorative look (higher cost).
• Semi-closed end pattern: partial finishing that balances cost and appearance.
• Open end pattern: standard economical option where perforated areas start/end with partial rows due to the punching process.

Materials
Square hole perforation is available in multiple materials including:

• Mild steel
• Stainless steel
• Galvanised steel
• Aluminium
• Brass
• Other alloys

Other resources & tools
Useful tools include open-area and sheet-weight calculators and a pattern catalogue with square-hole selections.

Caractéristiques / spécifications techniques

• Hole type: Square (grid-like pattern)
• Common pitch configurations: U (rectangular), M (diagonal/45°), Z (staggered)
• End pattern options: Closed end, Semi-closed end, Open end
• Typical materials: Mild steel, Stainless steel, Galvanised steel, Aluminium, Brass, Other alloys
• Key properties: High open area, uniform load distribution, versatile aesthetic options
• Typical applications: Ventilation and safety guards, facades and sunscreens, filtration and drying systems, industrial screening, acoustic panels
• Associated tools: Open area, Sheet weight and Unfolded sheet size calculators; pattern catalogue with square-hole options
