Spool distribution block P0041A

pneumatic5/2standard

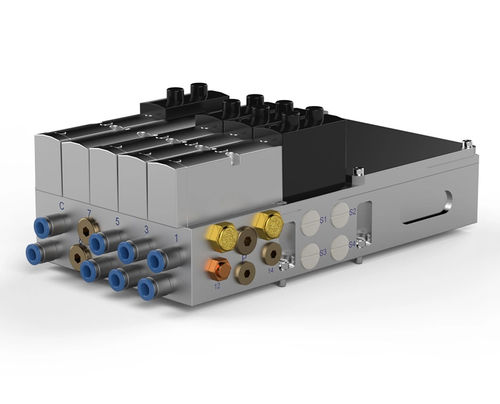

Large valve unit four valves One valve is dedicated for tool change The tool change valves shuts off the air to the other valves on tool change Built in connection box for I/O signals Standard ISO01 26mm IE interface The RSP valve unit is connected to the robot signal/air interface. The signals from the robot are connected to the terminal inside the valve unit. Connections for up to five valves with two solenoids each are prewired. On the valve unit a contact is mounted for transferring signals to/from the tool mounted at the wrist of the robot. As standard Festo-valves are used. Other brands can be fitted on request. Working temperature - +10°C – +50°C | 50 °F – 120 °F Weight - 3.8 kg | 8.4 lb Air connection, inlet - Ø10 mm hose (1x) Air connection, outlet - Ø8 mm hose (8x) Air channels dedicated - 2 (TC open and TC close) Air channels available to tool - 6 Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Valve size - ISO15407-2 26 mm Valve type - 1x Tool change valve 2×3/2 NO/NC, 3 x Directional valves 5/2 Bistable IP Class - IP 54 Signals total - max 39 Signals dedicated tool side - 3 (GND, 0 V and 24 V) Signals available to tool - 21 Voltage, valves - 24 V Connection input - 2x M25x1.5 for cable gland Connection output - Souriau 23p Female Rated current - 5 A
