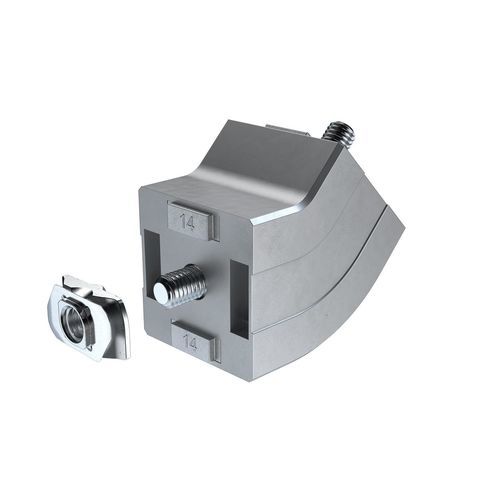

Profile fastener GUS 454 series

constructionfor industrial applicationsgalvanized

Product name
Angle fastener 45° (GUS 454_, variants: GUS4540, GUS4541)

Application
for rigid 45° bracing, e.g.:

• guardings
• frames

Scope of delivery (kit)

• 1 Fastener GUS4540
• 1 Drop-in Nut TIN4508
• 1 Cap screw ISO 4762 M8x25
• 1 Cap screw DIN 6912 M8x20
• 2 Washers ISO 7089 M8

Technical data
Material: zinc die-cast or galvanized steel
Tightening torque:

• IBS M08X025 = 26 Nm
• IBS M08x020NIKO = 20 Nm

Measurement / Drawing
2D dimension drawing available for Angle Fastener 45°

Bill of material / Identifiers
Bill of material: GUS4541
IDNR: GUS4541

Features / technical specifications

• Type: 45° angle connector / fastener
• Intended for rigid 45° bracing (guardings, frames)
• Material options: zinc die-cast or galvanized steel
• Tightening torque values specified for included screws (see Technical data)
• Scope of delivery for kit includes fastener, drop-in nut, screws and washers
• Available as individual fastener (GUS4540) and as kit (GUS4541)
