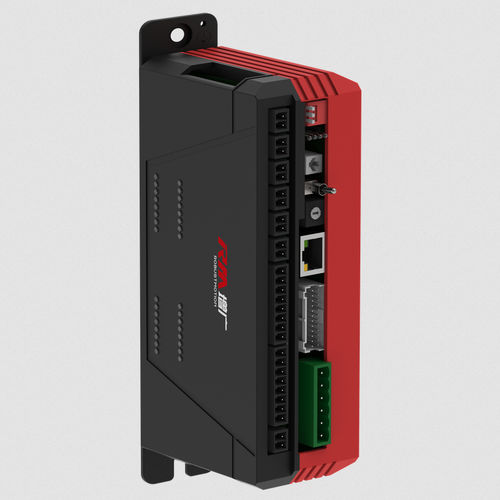

DC servo-controller RM-C-F series
I/Osingle-axisModbus

DC servo-controller - RM-C-F series - RobustMotion—Foshan Augmented Intelligence Technol - I/O / single-axis / Modbus

Add to favorites

Compare this product

fo_shop_gate_exact_title

Go to the RobustMotion—Foshan Augmented Intelligence Technol website for more information

Characteristics

Motor type: DC
Input/output: I/O
Other characteristics: single-axis, Modbus
Output voltage: 24 V
Current: 20 A, 40 A, 60 A

Description

I/O Interface - 1) Optocoupler isolation 2) 16 input and 16 output terminals (The number of Input and output terminals is varied from different controller models.) 3) Supports NPN Max.input Pulse Frequency - Max.200KPPS(24V)/Max.500KPPS(5V) - Max.200KPPS(24V)/Max.500KPPS(5V) - Max.200KPPS(24V)/Max.500KPPS(5V) LED Display - Red, Yellow and Green Status Lights - Red, Yellow and Green Status Lights - Red, Yellow and Green Status Lights Model Length (m) - Standard 3/5 - Standard 3/5 - Standard 3/5 Usage Environment - 1) Environment Temperature for Use:0-40°C . 2) Environment Humidity for Use: 85% RH or below ( no condensation). 3) Working Environment: avoiding to work under environment with strong light source, strong ultraviolet or corrosive gas. 4) Environment Temperature for Preservation: -10°C to 65°C . 5) Environment Humidity for Preservation: 90% RH or below ( no condensation) . Dimensions X * Y * Z (mm) - 190*77*48.75 - 190*77*48.75 - 190*77*48.75 Weight (kg) - 0.4 - 0.4 - 0.4 Protection Class IP - IP20 - IP20 - IP20 Cool Down - Natural Convection Cooling - Natural Convection Cooling - Natural Convection Cooling
