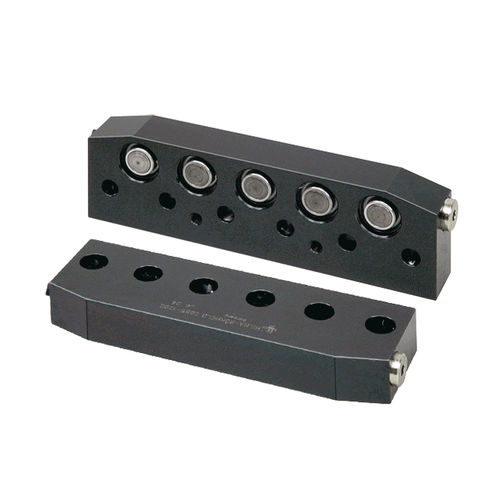

Hydraulic clamping element 2.209 series

mechanicalspringcompact

single acting with spring return with press-in or built-in pistons The clamping bar is mounted on the press bed or ram using a spacer bar. Clamping is carried out on the die clamping edge by applying hydraulic pressure to the 5 pistons which are arranged side by side with a pressure medium and mechanical unclamping by a spring return. Hydraulic oil is supplied through G 1/4 ports provided on both sides. Flat design with tool insertion slopes. Clamping force up to 35 kN uniformly distributed over 5 pistons. When using several clamping bars in a row, the elements are interconnected by means of hoses or pipes. Applications • stationary installed on press beds and rams • on machines and equipments for clamping and locking Special features • very flat and compact design • fully resilient stroke limitation • easy installation • easy retrofit
