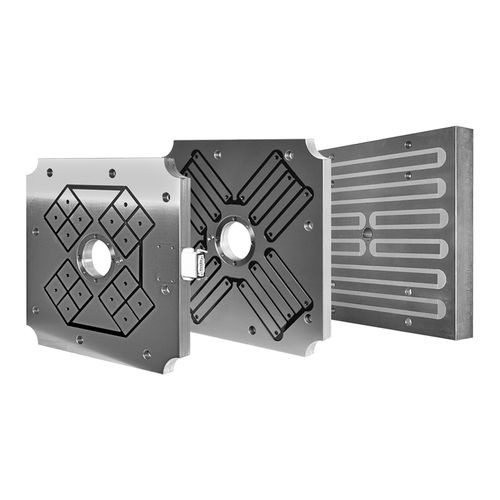

Magnetic clamping system 9.1136
Add to favorites
Compare this product
Characteristics
- Type
- magnetic
Description
max. working temperature: 240°C
specific magnetic force: 18 kg/cm² (directly at the pole)
effective magnetic force: max 5-12 kg/cm²
magnetic penetration depth: 15-20mm
plate thickness: 55mm
mounting: as per customer's request
interface: customer-specific or as per Euromap 70.0 / 70.1
