Control electrical enclosure TAB4.0-S

customsurface-mountedaluminum

Product overview

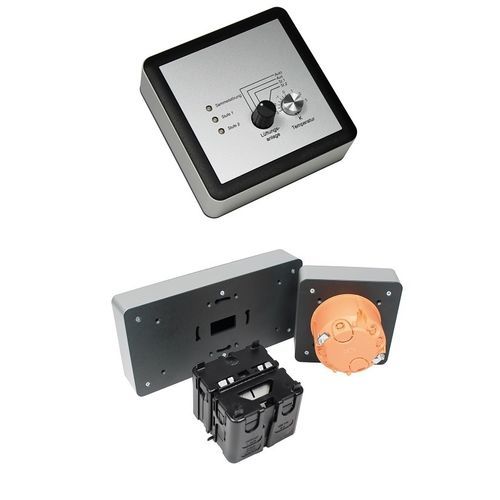

TAB4.0 surface-mounted control panel enclosures available in several sizes. Aluminium housings with polycarbonate details; enclosures are custom-populated and labelled. The self-adhesive resopal nameplate can be replaced when modifications are required.

Functions / Installation options

• Rotary switches with 2, 3 or 4 positions, potential-free wired to terminals
• Potentiometers, active or passive
• Push-buttons as normally open, normally closed or changeover contacts on terminals
• LEDs (red, green, yellow) routed via fixed light guides directly into the front panel
• Digital displays for measured values
• Sensors wired directly to terminals (PT1000, Ni1000, etc.)

Available sizes / Variants

• TAB4.0-S — 100 x 100 x 40 mm
• TAB4.0-E — 200 x 100 x 40 mm

Note
Composition of components and total price provided on request.

Technical specifications

• Model: TAB4.0-S
• Series: TAB4.0
• Enclosure material: Aluminium with polycarbonate details
• Colour: silver / anthracite
• Dimensions (W x H x D): 100 x 100 x 40 mm
• Weight: 0.7 kg
• Product number / SKU: 00002973
• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Release Date: 2026-04-28
• Special features: Self-adhesive resopal nameplate; customer-specific population and labelling
