Screw compressor VRH seriesairhydraulic motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- hydraulic motor
- Portability
- stationary
- Application domain
- industrial
- Other characteristics
- compact, high-performance, air-cooled
- Pressure
7 bar, 8 bar, 10 bar, 13 bar
(101.53 psi, 116.03 psi, 145.04 psi, 188.55 psi)- Flow
Max.: 7,000 l/min
(1,849.2 us gal/min)Min.: 1,000 l/min
(264.17 us gal/min)- Length
696 mm, 793 mm, 820 mm
(27.4 in, 31.22 in, 32.28 in)- Width
810 mm, 910 mm, 966 mm, 1,325 mm
(31.89 in, 35.83 in, 38.03 in, 52.17 in)- Height
704 mm, 874 mm, 1,057 mm
(27.72 in, 34.41 in, 41.61 in)- Weight
185 kg, 225 kg, 350 kg, 660 kg
(407.9 lb, 496 lb, 771.6 lb, 1,455.1 lb)
Description

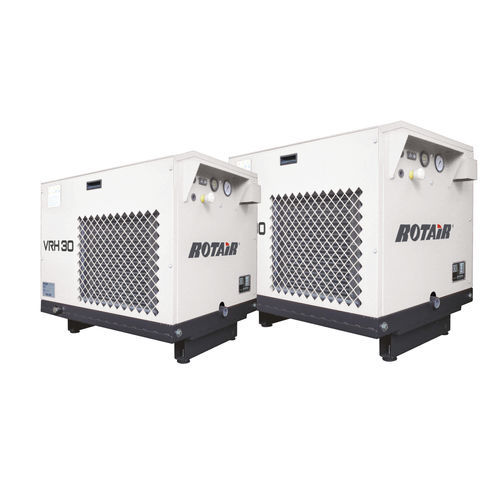

High performance hydraulic motor driven compressor in compact dimensions, to be easily fitted on excavators or operation machines, wherever there is need of high quality compressed air.
Customized to the specific excavator model and performances, for a tailor-made use, according to the use and tools.
Suitable to operate under extreme environmental conditions: working range between 15 °C (+ 5° F) and +45 °C (+113°F)
Service points easily accessible
Direct motor/airend coupling
By–pass device on the compressor hydraulic line to assure the best performance and working also with low temperatures.
An electro-fan and generous radiator to ensure efficient cooling
Safety stop in case of high working temperatures.
