Acceleration measurement circuit board

for pressure measurementfor displacement measurementfor temperature measurement

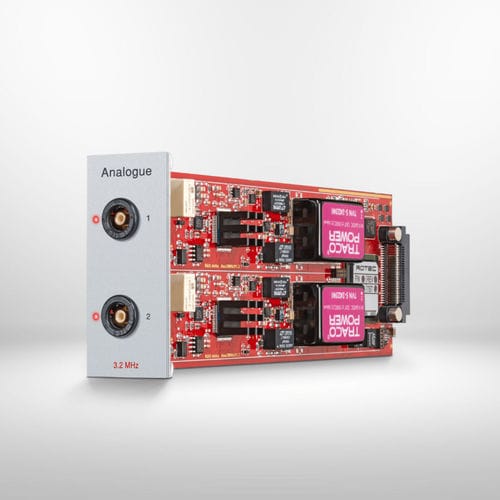

RASDELTA ANALOG BOARD 3,2 MHZ With the RASdelta analog board, you can measure analog quantities such as airborne and structure-borne noise, acceleration, temperature, displacement or pressure. These quantities can be used, for example, to determine the position of a sound source or to carry out detailed valve train or cylinder pressure investigations. The analog measurement data is acquired by equidistant sampling. Input channel 2, galvanically isolated Max. sampling frequency per channel 3,2 MHz Analogue bandwidth 1,2 MHz A/D converter 16-Bit Sigma-Delta Connectors SMB Upper input voltage range • - 3 balanced input voltage ranges of 0,1, 1 and 10 V • - AC and DC coupling • - ICP power source RASDELTA ANALOG BOARD 50 KHZ With the RASdelta analog board, you can measure analog quantities such as airborne and structure-borne noise, acceleration, temperature, displacement or pressure. These quantities can be used, for example, to determine the position of a sound source or to carry out detailed valve train or cylinder pressure investigations. The analog measurement data is acquired by equidistant sampling. Input channel 3, differential, galvanically isolated Max. sampling frequency per channel 50 kHZ Analogue bandwidth 24 kHZ A/D converter 24-Bit Sigma-Delta Connectors SMB Upper input voltage range • - 2 balanced input voltage ranges of 40 and 80 V • - AC and DC coupling • - ICP power source Lower input voltage range • - 11 balanced input voltage range 20, 10, 5, 2,5, 1,25 V and 625, 320, 160, 80, 40 und 20 mV • - AC and DC coupling • - ICP power source
