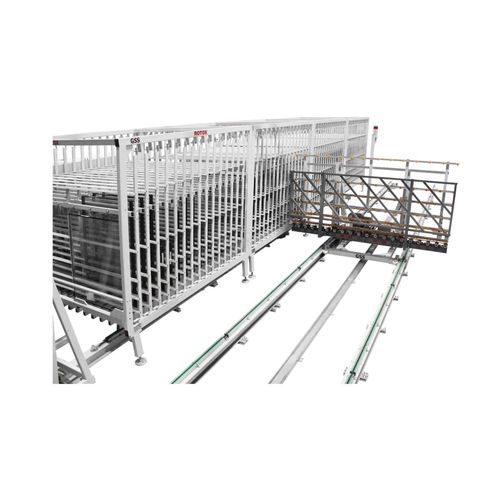

Glass sorting system GSS

Advantages • Non-wearing shelves with rubberised storage spaces without drive belts • Little required space at the same number of compartments • Number of compartments according to requirements, storage and removal places • Distribution carriage with driven rollers for the in and outward transfer of the glass panel • Shuttle carriage under the shelves with operator friendly operation position • Placing of several glass panel in one compartment • Confirmation of data to the main computer (glass panel completely stored, broken etc.) • Easy discharge of stored commissions • Manual selection of the glass panel at the controlling PC • Lightbox with lighting tubes for glass panel control before the warehousing process Technical data Power (kW) : 12 Voltage (V) : 400 Operating pressure (bar) : 7 Air consumption (l/min) : ca. 100 Max. width of compartments (mm) : 55 Max. width of glass panes (mm) : 1.500 (standard) 2.300 (option) Max. height of glass panes (mm) : 2.300 Machine dimension L x D x H (mm) : according to specification
