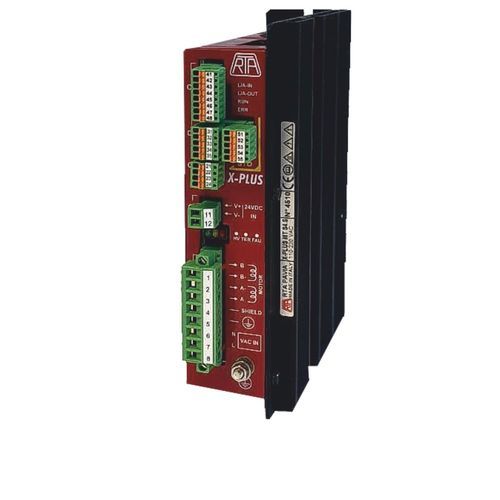

Stepper motor drive X-PLUS MT S4

stepper motor drive
stepper motor drive
Add to favorites
Compare this product


Characteristics

Other characteristics
stepper

Description

►New series of stepping motor drives with Modbus interface, direct input from the main AC power supply and STO function ►Direct connection from the main AC power supply (110 Vac to 230 Vac) ► Auto-Sync function available HIGHLIGHTS ► Communication by means of Modbus TCP/IP interface ► Modes of operation: PROFILE POSITION, PROFILE VELOCITY and HOMING ► Full digital microstepping drive ► Safe Torque Function (STO) - SIL3 with Error Detection Monitor ► Wide range of SANYO DENKI stepping motors to be coupled with: holding torque up to 9,2 Nm and flange size up to 86 mm ► Easy setup by RTA Modbus configurator software ► UL/CSA ► Communications by means of Modbus TCP/IP interface ► Range of operating voltages: 110-230 Vac ► Protections: -Protection against under-voltage and over-voltage. -Protection against a short-circuit at motor outputs. -Overtemperature protection with thermal sensor. ► Electronic damping facility for further acoustic noise and mechanic vibrations reduction ► External fans no needed ► Configurable IP addres via USB port ► Warranty 24 months ► Wide range of motor phase setting ► Motor current overboost ► Different variety of HOMING operation modes ► Encoder feedback
