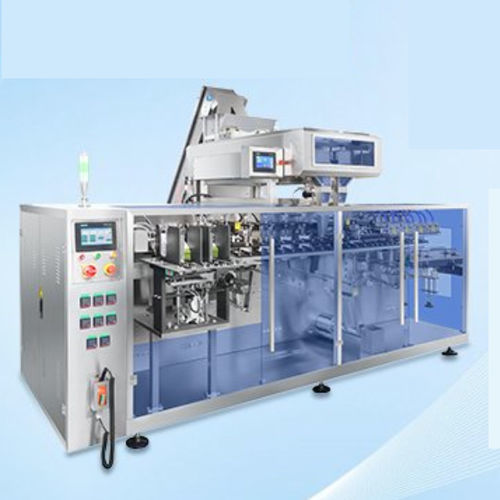

Food product counting and packing machine HPP series

sachetbagfor pharmaceutical products

Product overview
Premade pouch counting and packing machine designed for gummies, capsules, tablets and a wide range of solid and liquid products across pharmaceutical, nutraceutical and food industries. Supports pouch widths from 50–220 mm and pouch lengths from 100–280 mm. Production speed depends on model and configuration (40–170 bags/min). Compatible with multiple filling technologies for flexible production lines.

Main operation
The system performs automatic pouch feeding, assisted pouch opening and shaping, product filling, air evacuation/degassing, heat sealing and finished pouch discharge using a synchronized multi-station indexing mechanism to ensure consistent cycle timing.

Filling systems and typical applications

• Counting machine + horizontal bag feeder: capsules, tablets, gummies (pharmaceutical / nutraceutical)

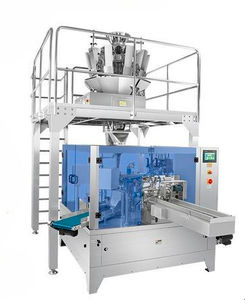

• Multi-head weigher + horizontal bag feeder: nuts, confectionery, pet food (food industry)
• Screw feeder + horizontal bag feeder: milk powder, protein powder, coffee powder
• Peristaltic / piston / ceramic pump + horizontal bag feeder: oral liquids, sauces, essential oils, high-hygiene liquids

Key features

• Photoelectric pouch detection with air-blow assistance implementing No Bag, No Fill, No Seal logic to avoid misfills and defective seals
• Assisted pouch opening and shaping mechanism for stable pouch positioning across different pouch styles
• Adjustable degassing / air evacuation to remove excess air before sealing and improve package appearance
• GMP-compliant modular design with quick-connect components for easier cleaning, maintenance and faster product changeovers
• Triple-indexing transmission structure (primary index + two secondary indexing units) for improved synchronization and positioning accuracy

Specification
Model: HPP-220 | HPP-260 | HPP-370 | HPP-450 | HPP-480
Speed: 50–60 bags/min | 60–100 bags/min | 50–110 bags/min | 40–160 bags/min | 40–170 bags/min
Bag Width: 50–90 mm | 50–115 mm | 100–160 mm | 50–190 mm | 50–220 mm
Bag Height: 100–280 mm (all models)
Voltage: 220/380V, 50/60Hz (customizable)

How it improves packaging quality and production

• Reduces product waste and defective packages through automatic pouch detection and No Bag/No Fill/No Seal logic
• Minimizes pouch deformation and improves shelf appearance with adjustable degassing and optimized pouch forming
• Shortens cleaning and changeover times via modular GMP design and quick-connect parts

Technical specifications

• Commercial model example: RD-HPP-220 (example configuration)
• Supported filling technologies: auger filler, multihead weigher, volumetric cup filler, screw feeder, peristaltic pump, piston/plunger pump, ceramic pump, electronic counting machine
• Supported pouch types: stand-up (doypack), zipper pouches, three-side seal, four-side seal and other premade pouch styles
• Detection & QA: photoelectric detection + air-blow assistance (No Bag, No Fill, No Seal)
• Air evacuation: adjustable degassing position adaptable to pouch size/shape
• Transmission: triple-indexing transmission for synchronized multi-station indexing
• Design: GMP-compliant modular construction for easy maintenance and validation support (FAT, on-site testing)
• Electrical: 220/380V, 50/60Hz (customizable)
