Multi-sine vibration control software TestUP

databaseconfigurationgraphic

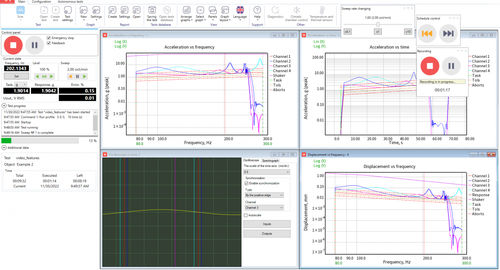

Vibration controllers and DAQs produced by RULA Technologies utilize a special software package for vibration testing and calibration — TestUp. The graphic subsystem of Testup contains a convenient menu, and provides an intuitive workflow. The users can display several graphs in one window, autoscale the graphs, add unlimited number of user cursors, additional grid lines, and textual notes. TestUP provides advanced profile customization and scheduling functionality, allowing you to create complex cycle-based test profiles following the international testing standards: EN 60068-2-27, MIL-STD-810G, ISO 16063-1:1998, etc. The vibration testing and sensor calibration software can automatically generate detailed reports for your testing profiles and save all configurations to a database on your PC. TestUP automatically calculates the safe limits for your test profiles based on the shaker and sensor configuration, and makes sure you never put your equipment in danger. Test types Our line of vibration testing systems can control up to 8 vibration shakers simultaneously with phase and amplitude control. The following types of tests are supported in MIMO mode: Sine, RSTD, Random, Shock, SRoR, FDR, SRS The system identification algorithm is based on computation of transfer-function matrix. Sine Sine vibration testing with fixed or swept frequency provides highly accurate multi-channel control in real time and allows you to easily find structural faults and resonances of the object. Our Resonance Search and Tracking Dwell module helps to determine FRF peaks of the object under test and dwell on the found resonances to test the survivability of the structure.
