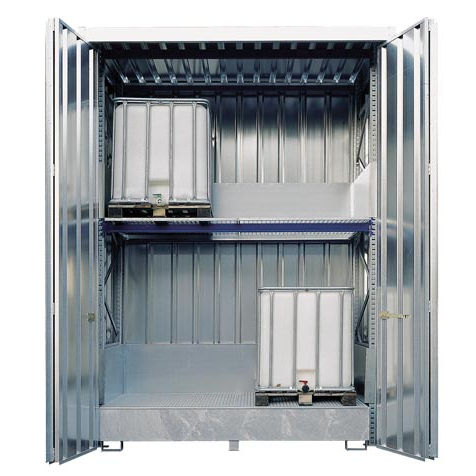

Galvanized steel intermodal container SCATC-4

storagehazardous materialsmulti-level

Characteristics: Approved for the outdoor storage of non-flammable, highly flammable and extremely flammable materials of all water hazard classes according to the German Ordinance on Industrial Health and Safety (“Betriebssicherheitsverordnung - BetrSichV”) Built according to the requirements of the German Water Resources Act (“Wasserhaushaltsgesetz - WHG”) Side walls, roof and back wall made from galvanised trapezoidal sheet metal Roof with integrated guttering via the long sides, snow load 100 kg/m² 2-part folding doors made from galvanised trapezoidal sheet metal, without barrier, free access via the complete width, prepared for 1 disc lock (not included) Galvanised frame structure Cross braces with blue powder coat, adjustable every 50 mm, loadable up to 3000 kg (uniformly distributed load) Extendable as basic or extension shelving Storage levels with anti-slip device and galvanised splash protection walls to direct spills into the sump Sump tray made of 3 mm sheet steel (S235JR), welded and leak tested, 100 mm clearance underneath the tank for corrosion avoidance, with galvanised grids as storage levels, loadable up to 1000 kg/m² Non-assembled delivery, for self-assembly with assembly instructions
