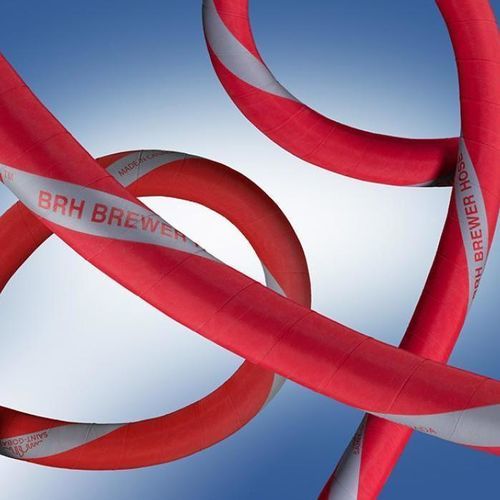

Hose assembly for food applications Versilon® BRH

medium-pressure

Brewer Hose
Versilon® BRH hose assemblies from Saint-Gobain are designed specifically to meet the requirements of beverage brewing applications. In addition to Versilon® crimp style fittings, BRH hose can be used with ReSeal® reusable fittings. The combination of patented ReSeal® reusable fittings and BRH hose provides numerous benefits, including significant savings (up to 90%) by allowing the ReSeal® fitting to be dismounted and reattached to a new length of hose instead of replacing the entire assembly.

Key Highlights

• Specially designed for brewing
• Suitable for transfer of non-oily liquid products such as in brewing
• Does not impart taste
• Extended shank for improved retention
• Sanitary: inspectable and cleanable
• High retention between hose and fitting
• Totally reusable with patented ReSeal® technology
• Cost savings on expensive fittings
• Designed to prevent bacterial entrapment
• No need to cut and discard hose assembly
• CIP/SIP compatible
• Safe for workers

Typical Applications

• Beverage brewing
• Food processing
• Dairy

Specifications
Inner Diameter in (mm) | Outer Diameter in (mm) | Wall Thickness in (mm) | Minimum Bend Radius in (mm) | Maximum Working Pressure Psi (Bar) | Vacuum Rating inHg (mmHg)
1 (25.4) | 1.69 (42.93) | 0.345 (8.76) | 4 (102) | 250 (17.2) | 20 (508)
1.5 (38.1) | 2.22 (56.39) | 0.36 (9.14) | 5.5 (140) | 250 (17.2) | 20 (508)
2 (50.8) | 2.81 (71.37) | 0.405 (10.29) | 6.5 (165) | 250 (17.2) | 20 (508)
3 (76.2) | 4.12 (104.65) | 0.56 (14.22) | 10 (254) | 250 (17.2) | 20 (508)

Technical characteristics / specifications

• Available inner diameters (in/mm): 1 (25.4), 1.5 (38.1), 2 (50.8), 3 (76.2)
• Outer diameters and wall thicknesses as per specification table above
• Maximum working pressure: 250 psi (17.2 bar)
• Vacuum rating: 20 inHg (508 mmHg)
• Sanitary design: inspectable and cleanable, CIP/SIP compatible
• Does not impart taste to transferred liquids
• Extended shank for improved connection retention
• Compatible with Versilon® crimp-style fittings and ReSeal® reusable fittings
• ReSeal® fittings allow dismounting and reattaching to new hose lengths, delivering significant cost savings
• Designed to prevent bacterial entrapment and enhance worker safety
• Regulations / Approvals: 3-A, FDA, USDA
