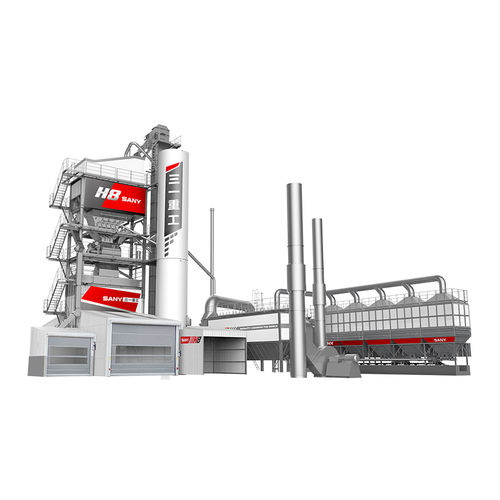

Stationary asphalt plant SLB2000B

stationary asphalt plant
stationary asphalt plant
Add to favorites
Compare this product
indicative price

Characteristics

Options
stationary

Description

Sany SLB2000B asphalt batching plant installed a mechanical safety device is in the access door of every key part for greater protection and security. Dual computer redundancy design of the 160 ton asphalt batching plant for the control system provides greater reliability in operating performance. Precise Measurement The plant is a gravity flow operation, using control and measurement technology that can maintain asphalt mix accuracy of ±1.0% Component measurement accuracy is also ±1.0% Double-door aggregate measurement structure with automatic drop correction results in process accuracy of ±1.5% Accuracy of bitumen aggregate ratio is ≤±0.1% Energy Efficient Optimized power usage reduces energy consumption Heat exchange rate of the drying drum is ≥85% The frequency conversion and constant pressure control technologies used in the burner result in a bitumen savings of 10% per batch Rapid asphalt heating technology results in the heating preparation time being shortened by about 1 hour Eco-friendly Exhaust emission concentration is ≤20mg/Nm³ Ringelmann blackness ≤ Grade 1, ambient noise ≤85 dB (70 dB in the control room) Eco-friendly design is used throughout the main body of the batching plant, with zero dust emission Exceptional efficiency 15% capacity redundancy design Specially designed mixing body with a mixing efficiency increase of 10% Screening efficiency ≥90% Convenient Management Network data sharing and GPS remote fault diagnostic system Compact Structure Minimal facility footprint Space saving, compact construction
