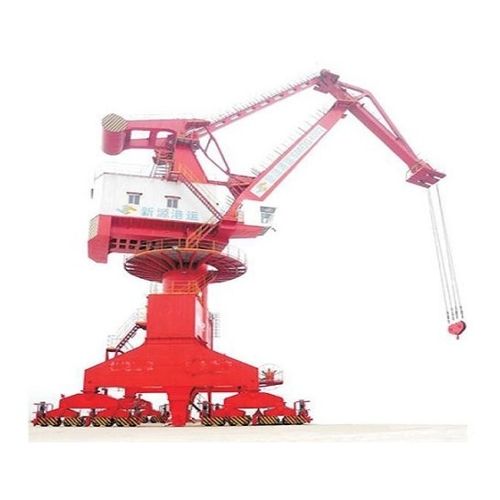

Rail-mounted crane MQG4043S
top-slewingarticulatedlifting

rail-mounted crane
rail-mounted crane
rail-mounted crane
rail-mounted crane
rail-mounted crane
rail-mounted crane
rail-mounted crane
rail-mounted crane
Add to favorites
Compare this product


Characteristics

Configuration
rail-mounted
Structure
top-slewing, articulated
Applications
lifting
Lift capacity

40 t
(44.1 us ton)

Working height

30 m
(98'05" )

Description

Intelligent and efficient Full automatic tracking for spreader slewing Slewing angle of the crane and position of the slewing motor is sent to the spreader by real time control and intelligent compensation algorithm. The spreader will move in the same angle speed in opposite to counteract the angle of crane slewing. Data of the grab in one or more cycle (wire rope lowering distance, slewing angle, luffing angle, wire rope lowering distance, accelerating and decreasing time) are optimized based on the recorded data for the grab to repeat the movement automatically. Over hoisting prevention for hook When the hook is lifted to the limit height, control relays enable control box on the buzzer alarm. Ascending motion stops and only descending is allowed. This device protects the lifting mechanism effectively, ensuring high efficiency safe protection. Speed protection for hoisting mechanism Acceleration of hoisting points are calculated and sub protection is set for our crane to predict the over speed trend and avoid the obvious crush. Hardware over speed switch is applied for double protection. Energy-saving and environmental friendly Active inverter technology is applied to transfer the stored dynamic power and potential power into electricity and be recycled to the grid. Moreover, it can resist the pollution to grid from higher harmonic voltage, thus increasing the power factor of the equipment. Intelligent low voltage capacitor compensation Full automatic resonance eliminating reactive power compensation device is configured to achieve the average power factor above 0.9 or more, which improves electricity efficiency and reduce wire consumption.

VIDEO

Catalogs

No catalogs are available for this product.

See all of SANY‘s catalogs
