rough terrain crane / mobile / boom / telescopic



  • Configuration:


  • Structure:

    boom, telescopic

  • Operating environment:

    rough terrain

  • Other characteristics:

    hydraulic, lifting

  • Lift capacity:

    Min.: 1 kg (2 lb)

    Max.: 35,000 kg (39 lb)

  • Working height:

    Min.: 0 mm

    Max.: 3,410 mm

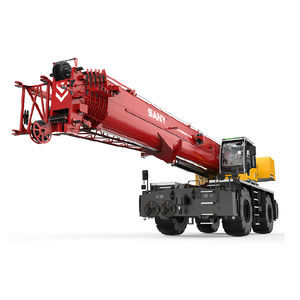

Sany SRC350 rough-terrain crane, based on a China-USA R&D platform for designing world-class tools, has a high power and robust lifting capacity. The crane, fully extendable 31.5 M, features a industry-leading, perfectly designed hexagonal profile which provides a lightweight boom.

SRC350 features American DANA automatic transmission, AXLETECH steering driving axles, and original, American Cummims engine. The crane provides a maximum travel speed of over over 40km/h with a gradeability of 75%. It features a four-wheel drive, providing excellent driveability, excellent mobility, and improved tire durability.

SRC350 includes four steering models with a minimum turning diameter of 6.2M resulting in improved comfort for off-road driving. Products of leading brands such as Parker, Rexroth have been used for key hydraulic components such as hydraulic pump, motor, valve, which results in excellent lifting speeds.

SRC350 delivers robust overload capacity through consistent power control, top-quality micro-mobility and high energy efficiency resulting out of the load feedback hydraulic system. Stable and consistent braking is provided by the special design rotary buffer. The crane features an independently designed SYMC controller made for construction machinery.
